Streamlining Safety for Milling Machines

Nov. 9, 2018
JM Performance Products' patented high torque retention knobs anchor safety between machine and spindle for high RPM mills.

Safety in design is critical to CNC milling operations end products and the machine’s profitability. As the trajectory of today’s new milling technology trends toward machines producing extremely high speeds/high RPM within a smaller overall footprint—potential safety issues can’t be ignored. Loose tools moving fast could present the potential for a lot of damage to the machine and workpiece.

Indirect costs can run the gamut from damaged facilities or equipment. Currently, there are no defined guidelines to address the potential hazards that small footprint/high RPM machines being introduced into the marketplace may present.

The bottom line is, everyone is looking to get more production per square inch and increase efficiency via heavy-duty, multi-axis machines doing precision milling using less space. The daunting obligation and responsibility for both industry and machine builders is to keep machine operations as safe as possible while achieving the consensus goal of optimizing mill productivity.

High Torque/Milling Safety Evolution

Without proper tools, milling machines can be a potentially dangerous threat at the forefront of this evolving safety climate. The retention knob is the main interface between the machine and the spindle and when exposed to severe conditions, failure of a standard retention knob can result in a tool breaking loose during a cutting operation. A tool, holder or knob breaking loose from the spindle at such high speeds and RPMs produces a projectile that can damage the spindle, tool, holder, workpiece or work holding apparatus.

Recognizing the potential for machine spindle interface failure that these small footprint/high RPM machines represent, JM Performance Products, Inc., a manufacturing innovator of CNC mill spindle optimization products since 2009, is leading the way in this safety evolution via their patented High Torque retention knobs.

In addition to solving the critical “loose-tool” factor and preventing tool holder deformation, the patented design delivers inherent safety benefits that are vital to progressively addressing this velocity-driven safety dilemma.

The fact is, most standard retention knobs are still being designed and manufactured to the standards put in place over 40 years ago—while the evolution of the tooling and the mills has been progressive and responsive. Even though it is a vital component in milling using V-Flange tooling, the retention knob has been largely overlooked in this evolution—including safety factors.

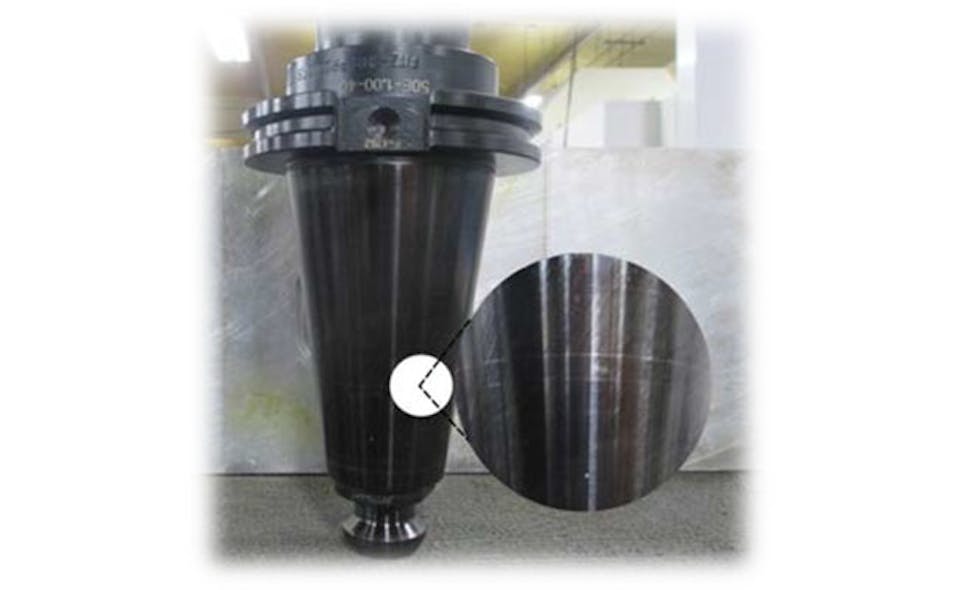

Extensive testing by JMPP has proven that standard design retention knobs often expand the tool holder, leading to excessive vibration, chatter, and mill harmonics. In addition to affecting finishes, tolerances, and tooling life, this vibration and chatter, caused by a lack of concentricity, can be damaging to the spindle and the drawbar of the mill.

With the advent of today’s very fast, very powerful, small footprint machines, this damage can directly result in the high-risk, red-flag safety dangers associated with a tool breaking loose during a cutting operation. In essence, it’s a disaster waiting to happen because if anything breaks loose—it would essentially be like a missile coming off the machine!

In reality, any industry that depends on high-speed precision milling, whether for roughing simple and exotic materials to complex geometries and micro parts, is going to face these tooling safety issues. By correcting the design flaw in the tooling, which is tool holder expansion, JMPP’s High Torque knobs overcome a myriad of issues industry-wide in terms of production, time, tooling, and safety.

One key factor in retention knob failure is the material strength—and JMPP is proactively migrating their 30 and 40 taper retention knobs from the traditional 8620H material to 9310H material, in order to ensure their durability and strength. The 9310H material offers 40% higher tensile strength than the 8620H material.

Additionally, JMPP has reviewed the cross-sectional strength of the knobs and identified a design flaw. To correct this flaw, they are modifying the size of the coolant holes in many of their 30 and 40-taper knobs to increase this cross-sectional strength.

In addition to evolving material strength on knobs to optimize safety and overall production, JMPP also laser marks their parts–providing dating on each knob. The laser marked ‘date-in-service’ feature, which includes a unique serial number for traceability, shows how long the knob has been in service.

This ensures safety as retention knobs are a perishable, consumable part—a typical retention knob is good for 1 to 3 years on a machine depending on how long the machine runs per day. The operator can simply enter the unique identifier serial number to show how long a knob has been in service and when a tool change should be made. Inspection of retention knobs during tool changes can reveal signs of diminished drawbar force. With spindle replacements costing $20,000 to upwards of $80,000, maintenance is critical.

Responsive High Torque/High RPM Engineering

Brother Industries, Ltd. (Brother: Nagoya, Japan), is a leading multinational manufacturer of CNC drilling and tapping centers for the automobile, aerospace, and medical industries. They identified the need to modify the standard used to manufacture their retention knobs, including the material tensile strength, to make them stronger to meet the machine’s manufacturing demands.

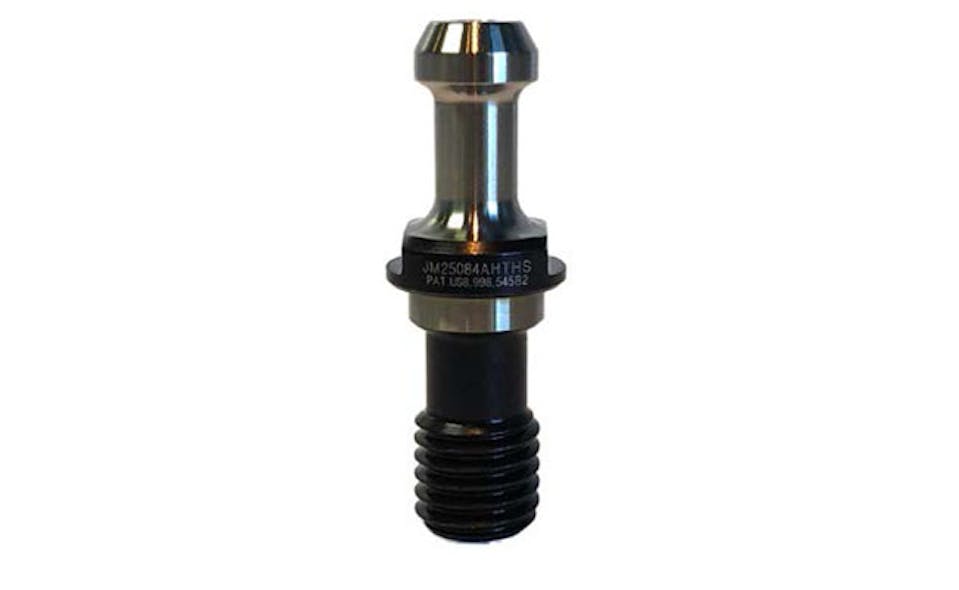

Using Brother’s modified spec for their BT30 retention knobs, JMPP quickly responded by introducing the JM25084ACHTHS (with coolant hole) and JM25084AHTHS (without coolant hole).

These knobs incorporated all of Brother’s dimensional and radius requirements along with JMPP’s High Torque patented design features and higher tensile material.

JMPP’s engineering team is the only retention knob manufacturer of record to progressively respond to Brothers’ unique modification challenge with a customized solution, based on Brother’s revised specs and material, and incorporating their High Torque standard tolerances and design features.

After engineering modified the design which makes the knobs stronger for high RPM machines, used in the manufacture of small diameter parts, JMPP issued the following directive:

Effective immediately for all Brother machines we need to be directing customers to use the JM25084AHTHS and JM25084ACHTHS instead of the current JM31109A, JM31109AHT and JM31109ACHT. The print provided by Brother notes changes to the knob on 4 dimensions and a material change not covered in MAS-P30T-2(30°).

Currently, JMPP has provided over 10,000 of the modified High Torque retention knobs to customers for their uniquely demanding high RPM machines, in addition to over 10,000 more of their standard High Torque knobs already in use.

High Torque/High RPM/Safety Conclusion

The Brother example is part of a continuing trend of manufacturers being progressive in trying to push capacity while also thinking about safety. JMPP is also focusing on bringing safety issues to the forefront with leading manufacturers like Kitamura and their ultra-compact (6 wide x 9.7 feet deep) MYCENTER 30 taper horizontal machine, which offers the world’s fastest rapid/cutting rates of 2,362 RPM on all axes.

Given its crazy speeds and size of tooling, JMPP views this as the ideal example of the trending combination that would benefit from their High Torque retention knobs—specifically their High Torque/High-Speed JM32621HTHS.

While the fact remains that everyone is ‘squeezing size’ as they strive to produce larger envelope parts on smaller machines, certain safety considerations must be addressed in this equation. Almost every kind of hazard can be found in a machine shop, and JMPP strives to be proactive in their approach to design, manufacturing, and key issues like how to increase speed rates safely that are facing the industry.

According to JMPP President, John Stoneback, “It is our position that the industry as a whole needs to recognize the potential for machine spindle interface problems that these small footprint/high RPM machines represent. Our High Torque retention knobs have inherent design elements that meet these issues head-on and we’re hoping that machine builders, tooling builders, and distributors will join us in getting this vital message out.”

All JMPP retention knobs are manufactured and material sourced in the United States and made from hot rolled 8620H or Grade 9310-H Fine Grain Steel. H13 tool steel is also available upon request. They are shot peened to relieve stress, hard turned for superior fit-and-finish, and balanced by design. They meet all 5 World Standards: ANSI, JMTBA, ISO or DIN, and JIS.
