Model H235 Manual Band Saw For Light-Duty Cutting

Oct. 10, 2006

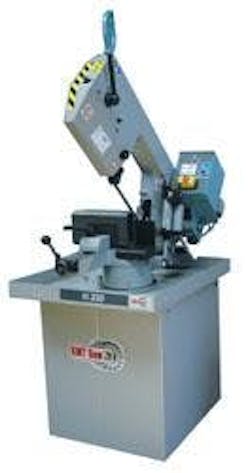

The Kalamazoo Machine Tool Model H235 Manual Band Saw is designed for light-duty cutting of tubes, pipes, light structural shapes and small solids up to 8-inches at 90 degrees. The saw has a variable speed blade from 65 to 320 fpm and can accurately miter up to 60 degrees to the right, while maintaining the material precisely in-line. The drive uses a single-phase power supply and transforms it to power a 230volt, 3-phase drive motor. The drive motor is coupled directly to a worm gear drive for smooth power transmission. The heavy-duty construction, including carbide sawguides and rigid guide supports, ensures accurate, straight cuts. The saw features manual sawframe raise/lower, manual vise, hydraulic/solenoid powered downfeed, and status indicators for power on, correct blade tension, broken blade and bandwheel cover open.* HP 1 * Electricals (specify one) 115-1-60 * Blade Length 8’3” * Blade width 3/4” * Blade Speeds variable 65-320 * Max vise opening 9 (in) * Weight 500 * Coolant capacity 1.5 gallons * Work Height 29.5”
