The TiltSort-Bot parcel and item sortation Autonomous Mobile Robot (AMR) system provides a modular design, floor space savings, and a rapid return on investment in comparison to traditional sortation equipment.
The TiltSort-Bot moves at up to 3 m/s. Each bot completes its task and returns to the induction station for its next pick. Each chute position can be configured to handle one or two sortation locations.
The TiltSort-Bot eliminates single point of failure due to the AMR system having multiple and redundant backups. Additional bots and induction stations can be added rapidly to increase the system's throughput capacities.

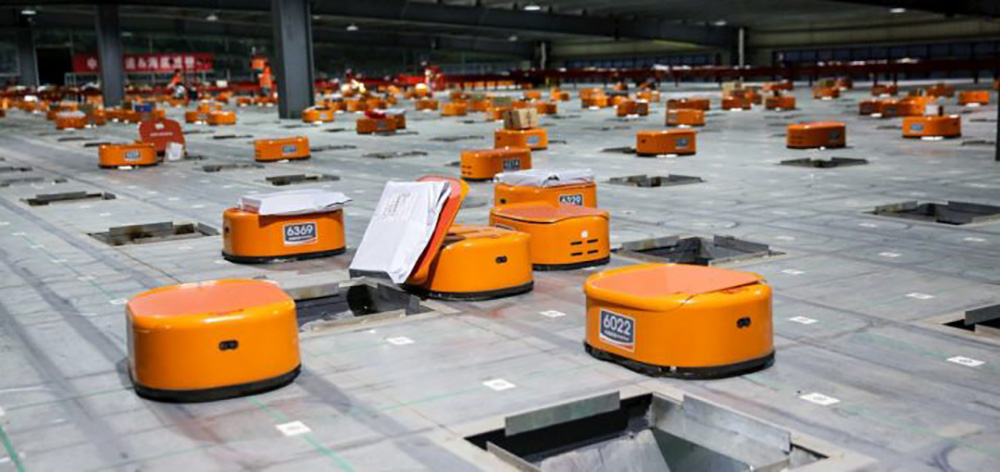

The TiltSort-Bot system is comprised of an AMR bot equipped with a tilt tray top. Operators, while standing in the induction station, simply place an item on the top of the TiltSort-Bot.
The camera above instantly reads the barcode and the bot is routed to its order chute via the shortest path. When the TiltSort-Bot reaches the order chute, the tray rises allowing the item to go down the chute. Each chute represents a sortation destination. Items are collected at the bottom of the chute in bags or gaylords. When the wave is complete, either operators or AMRs dispatch the items to shipping.
The TiltSort-Bot AMRs lends itself to Proof of Concept (POC) systems. The modularity, scalability, and flexibility allow POC systems to be designed and implemented cost-effectively. After the POC is complete, virtually the entire system can be moved and integrated into the full system. Saving time and resources while also reducing risk. The system can be integrated with conveyor, other AMRs, and AS/RS systems to meet throughput requirements.
