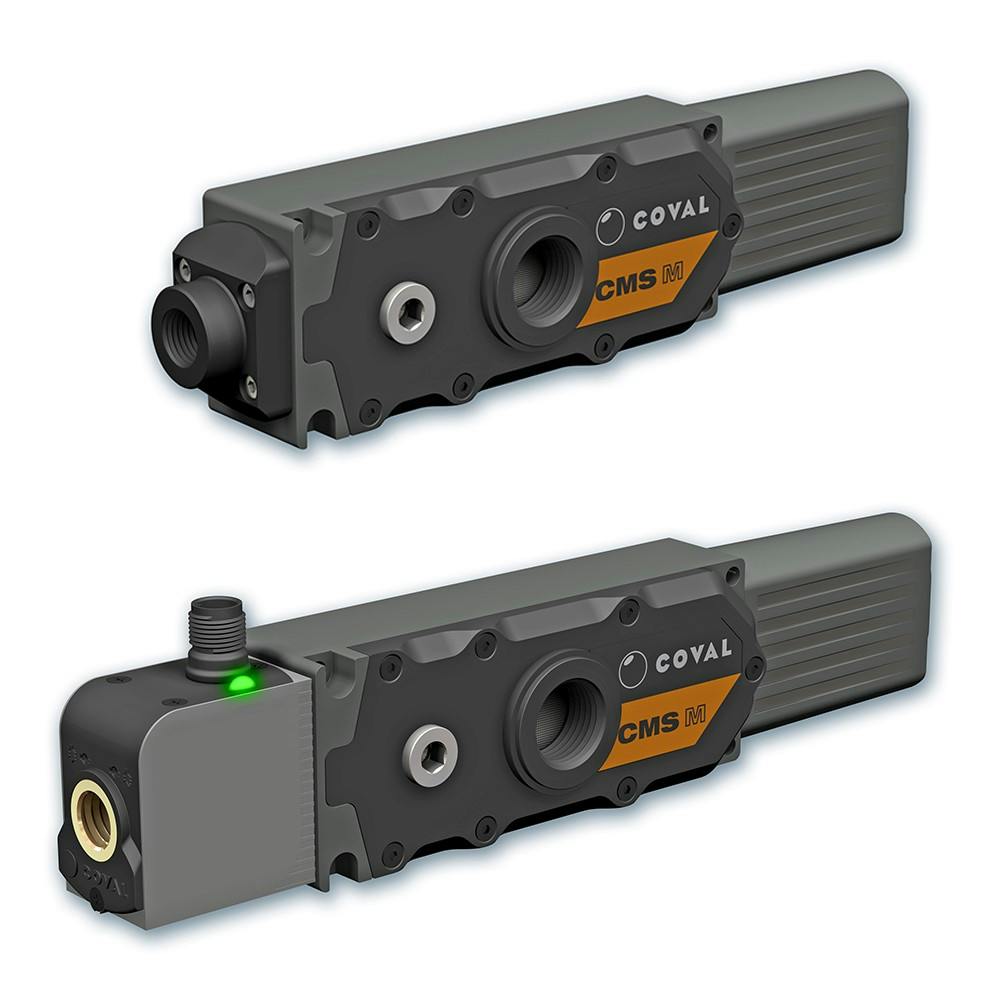

Multistage Mini Vacuum Pumps: The CMS M Series

The CMS M series, the latest addition to COVAL's range of multistage vacuum pumps, offers high suction flow rates in a small size.

CMS M multistage mini vacuum pumps provide a powerful, durable solution for handling porous parts, emptying tanks, or random gripping in harsh industrial environments. They guarantee powerful suction flows of up to 19.42 SCFM while reducing compressed air consumption.

With its modularity, it's easy to adapt to a variety of applications and simple to maintain. Available in two suction capacities (10.59 SCFM to 19.42 SCFM) and with or without vacuum and blow-off control, these mini pumps also offer two exhaust configurations to perfectly match each specific need.

COVAL's multistage technology maximizes the energy input of compressed air by cascading several stages of Venturi profiles and combining their respective suction flows. Intermediate valves progressively isolate each stage to achieve maximum vacuum level. This technology makes it possible to generate high suction flow at low vacuum levels.

Features:

  • 2 models: 15, 30
  • Maximum vacuum: 80%
  • Suction flow rate: up to 19.42 SCFM
  • Multistage technology
  • 2 exhaust configurations
  • With vacuum and blow-off control (models with pump control only)
  • Vacuum control: NC, NO (models with pump control only)
  • Resistant to harsh environments
  • Optimized multistage Venturi system that guarantees powerful suction flow rates and reduced compressed air consumption
  • Configurable to needs and easy maintenance

Price: Contact the company for price


Coval
Raleigh, NC
(919) 233-4855
[email protected]
www.coval-inc.com
