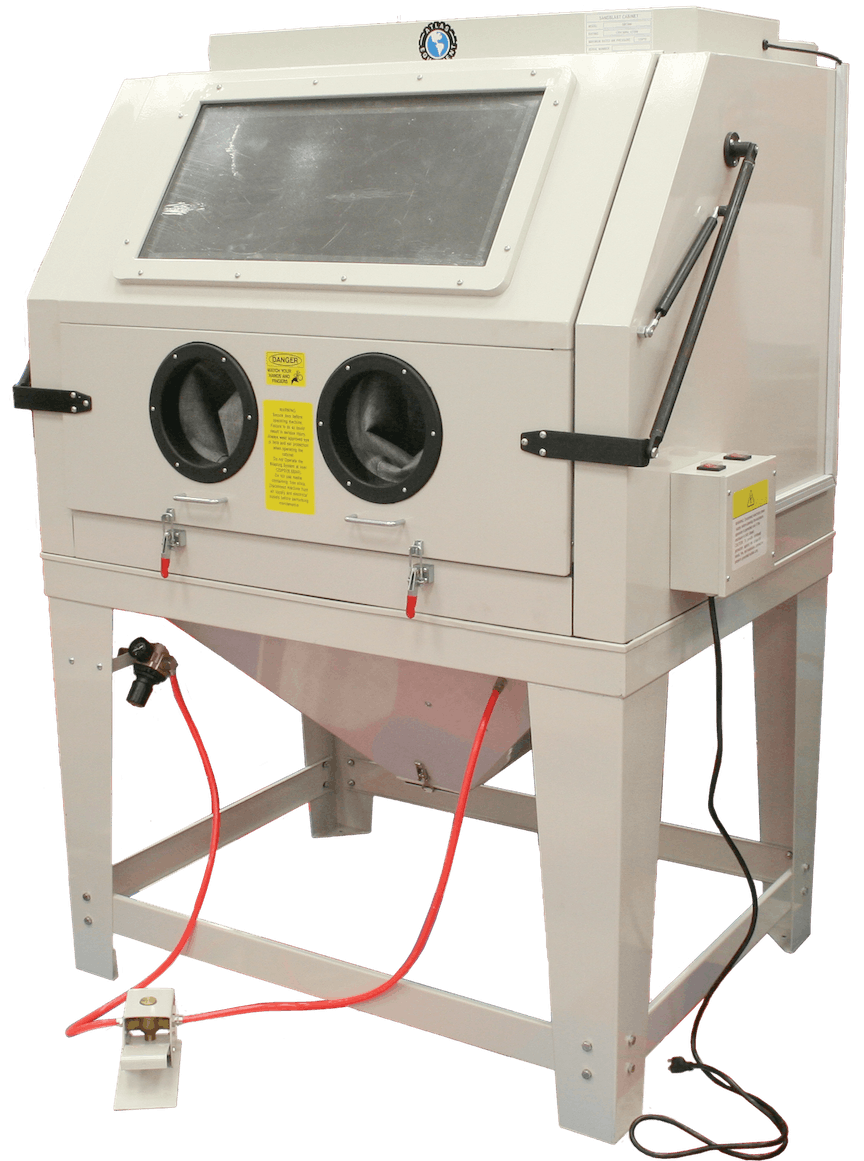

Atlas SBC990 Automotive Sandblast Cabinet Removes Scale, Rust From Large Parts

June 10, 2024
Atlas Automotive Equipment's user-friendly SBC990 sandblast cabinet provides users with an easy and efficient way to remove scale and clean tools.

The Atlas SBC990 sandblast cabinet offers a quick and easy solution for cleaning automotive parts and tools with a large interior space and an extra-large, front-loading door. It uses a vacuum system to keep the work area free of floating rust and used media. The workspace and larger opening allow the user to blast even the biggest parts. The lower hopper stores the abrasive material for reuse or easy removal.

A foot pedal controls the flow of abrasives from the air gun allowing the operator to concentrate on the work inside the cabinet rather than holding the trigger of the air gun. The heavy-duty blasting gun uses ceramic nozzles with a variety of hole sizes to provide the most effective blasting area

The cabinet can be constantly connected to an air supply and is ready for immediate use to remove scale or heavy rust from automotive parts, clean up rusty tools, etch glass, or any other special application.


  • Foot-operated control valve
  • Heavy-duty blasting gun with replaceable ceramic nozzles
  • Self-contained dust collection system with cartridge filter and bottom gate clean-out
  • Extra large front/top load door
  • Extra nozzles and plastic protectors included
  • 110V power
  • Recommended Media: Glass bead (not included)
  • Replacement parts & wear items always in stock

Price: $2,500

Work Area (WxDxH) 46 x 34 x 33 in. (1,200 x 860 x 850 mm)
Overall Dimensions (WxDxH) 52.5 x 48 x 69 in. (1,300 x 1,200 x 1,800 mm)
Viewing Window (LxH) 27 x 12 in. (700 x 300 mm)
Gloves 24 in. (600 mm) gauntlet
Power Gun NE490 foot pedal w/gun
Vacuum Attached
Air Requirement 24 CFM/125 to140 psi (external air supply required)
Power Supply 110V

Atlas Automotive Equipment
Greenfield, IN
(866) 898-2604
