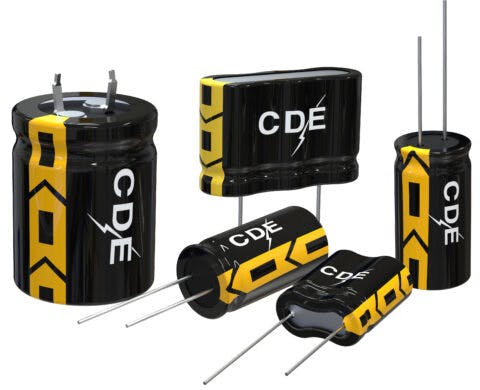

3-Cell Supercapacitors (DSF & DGH Series)

Based on Knowles' Cornell Dubilier brand DGH and DSF Series supercapacitors, these Electric Double Layer Capacitors (EDLC), or supercapacitors, use a 3-cell package for higher operating voltages and printed circuit board (PCB) space savings.

The devices provide very fast power discharge that cannot be matched by conventional capacitors or batteries. That large capacity makes it possible to support brief power interruptions, supplement batteries, or even be used in place of batteries in many applications.

The supercapacitors offer a notable jump in voltage rating over typical radial-mount supercapacitors, up to 9 WVDC. A key feature of the DGH and DSF Series additions is the unique 3-cell radial-leaded package. Compared to single or dual-cell supercapacitors, the compact design saves space and allows for much higher operating voltages, making them ideal for a wider range of applications. Both series include capacitance values from 0.33 to 5 Farads. Multiple devices can be banked for even higher capacitance or voltage.

Internal cell balancing ensures optimal performance and serves as a production time saver. DGH and DSF Series 3-cell supercapacitors are also more cost-effective than other options currently available.

Both series offer high energy density and extremely low self-discharge rates, benefiting energy storage applications. Both series are also tolerant of wide-ranging operational environments, with operating temperature ranges from -40 to 149°F (-40 to 65°C) for DGH 8.1V/DSF 9V and -40 to 185°F (-40 to 85°C) for DGH 6.9V/DSF 7.5V.

Low equivalent series resistance (ESR) minimizes energy loss for high efficiency. ESR varies by part but is lower than most capacitors with similar storage capabilities. These supercapacitors are designed to withstand over 500,000 charge/discharge cycles, ensuring long-lasting performance without performance degradation. Operating life is expected to be up to 10 years.

These supercapacitors are ideal for applications including solar & wind energy harvesting, mechanical actuators, AGV (Automated Guided Vehicles), EV transportation power, smart utility meters, IoT, pulse battery pack alternatives, memory backup, battery/capacitor hybrids, UPS systems, emergency lighting, LED power, solar lighting, or anywhere that significant energy storage is needed.


  • More cost-effective than competition
  • Ultra-low self-discharge current
  • Wide temperature range
  • Higher energy density
  • Higher power density
  • Low ESR
  • 500,000+ charge/discharge cycles typical

Distributor Information: This product is available from New Yorker Electronics. Purchase here.

Knowles Corporation
Itasca, IL
