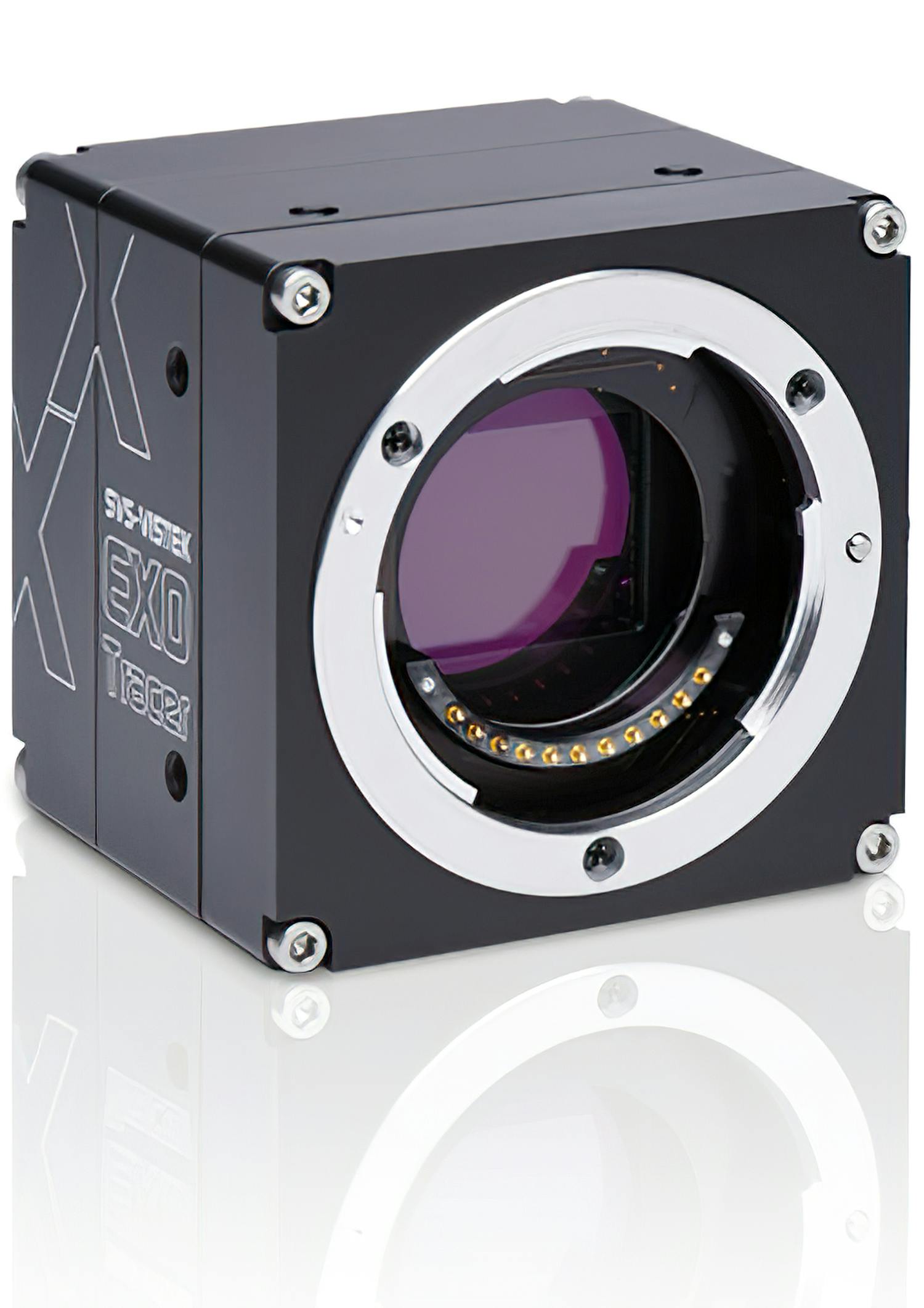

EXO Tracer Cameras Capture High Resolution Images In a Split Second

The EXO Tracer Series of industrial cameras are designed with fully functional lens control of focus, zoom, and aperture via GenICam, along with high-speed USB3 and GigE interfaces to support the transmission of video. They are traditionally used for Intelligent transportation systems (ITS) for everything from counting cars at stop lights to enforcing rules of the road.

The embedding of the lens control in the GenICam 3.0 tree of the camera allows any GenICam application to control the lens without additional drivers. The integrated strobe controller is also mapped in the GenICam tree, all settings are realized as GenICam properties.

The series offers 12 models, giving integrators a choice of 12.3, 16.8, 19.6, or 20.2 MP color or mono Sony IMX CMOS sensors in speeds up to 22 frames-per-second (fps). High resolutions, combined with fast fps, make the cameras ideal for monitoring multiple traffic lanes with a single camera.

The geometry of the sensor-side beam path, which applies to all MFT lenses, harmonizes perfectly with sensor sizes from 2/3 to 1.2 in. and guarantees an extremely clean flat field. Resolutions of up to 20 MP and a dynamic range of up to 72 dB result in an outstanding image with highly sensitive sensors.

ITS cameras are often installed outdoors in environments that can pose serious challenges to their operation. EXO Tracer cameras handle extreme weather in temperatures from 14 to 149°F (-10 to 65°C) due to their advanced thermal management. The all-metal housing is IP40 protection rated while being compact to meet the minimal size requirements inside housings.

Its Micro Four Thirds (MFT) lens mount is compatible with MFT lenses including those from Panasonic. By avoiding internal mirrors, MFT allows a much thinner camera body. The MFT's beam geometry on the sensor side of the lens works in harmony with the highly sensitive sensor, resulting in a nearly perfect flatfield image.

Features:

• Full control of lens (focus, zoom, aperture)
• Global shutter
• Monochrome and color versions (Bayer Pattern)
• Various trigger (int./ext./free running) and exposure modes
• Logic-Trigger functions (PLC)
• Adjustable gain, auto gain, and auto-exposure
• Various binning modes
• Area of interest modes (AOI)
• White balance for color versions
• Micro Four Thirds lens adapter
• 8/12 Bit video data stream (14 Bit ADC)
• 256 MB burst mode frame store
• 4 x Power Output (PWM)
• Programmable sequencer für shutter and LED illumination
• SDK for Windows (32/64 Bit) and Linux available
• GenICam 3.0 standard compliant
• Integrated multichannel strobe controller

Price: Contact the company for pricing

SVS-Vistek Inc.
Lewisville, TX
(800) 935-6593
[email protected]
www.svs-vistek.com
