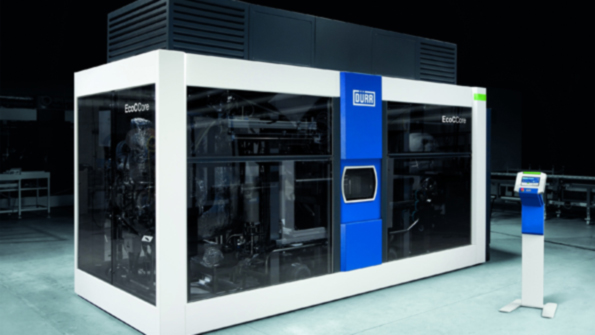

The new EcoCCore is designed to use non-halogenated hydrocarbons and modified alcohols. Due to a one-third increase in product throughput and load weight it reduces per-unit cleaning cost.

Solvent-Based Part Cleaning Systems

Feb. 19, 2014
Uses non-halogenated hydrocarbons, modified alcohols One-third more loading volume Variable-frequency drives Self-explanatory pictographs

With its EcoCCore system now replacing the previous 81C/P equipment series, DÜRR ECOCLEAN is setting new standards in solvent-based part cleaning. This is due, on the one hand, to a one-third increase in product throughput and load weight that yields a marked reduction of per-unit cleaning cost. On the other hand, the new machines are equipped for improved cleaning performance, superior process reliability and significant energy savings. Designed to use non-halogenated hydrocarbons and modified alcohols, the EcoCCore also boasts superior ease of operation, less space demand, and a translucent design.

Wherever grease-free surfaces must be obtained, solvents are the part-cleaning medium of first choice. Users' priority lists are topped by process reliability, cost and energy efficiency, high speed, availability, short delivery times and eco-compatibility. Accordingly, when Dürr Ecoclean set out to develop the EcoCCore, the focus was on these factors. The new system is characterized by an extensive standard equipment level — including, e.g. two flood tanks, heat recovery, and full-flow plus bypass filtration capabilities. Switching from non-halogenated hydrocarbons to modified alcohols and back is particularly easy, so the EcoCCore (which operates under full vacuum) is a forward-looking solution that also addresses changing future needs. In combination with appropriate solvents, this system can even remove chlorinated oils from parts surfaces. .

The work chamber is designed to hold cleaning tanks measuring up to 670x480x400 mm, thereby offering one-third more loading volume than the predecessor system. Throughput can thus be doubled, depending on the basket size. The maximum load weight capacity has likewise been increased by more than 30 percent to 200 kg. With a cycle time of less than 8 minutes this provides a significant reduction in per-unit cleaning cost.

A major step toward improved cleaning quality lies in the new preliminary steam degreasing process. Here the oil-containing distillate is not passed into the flood tank as usual but is directed straight into the distilling system. This minimizes oil deposits in the flood tank and an undesirable oil enrichment of the solvent. The result is an enhanced degreasing performance that will be found particularly beneficial with parts to be coated or laser-welded after cleaning.

In addition, the preliminary steam degreasing step offers advantages under elevated oil drag-in conditions or when a second flood tank is used for a preservation treatment. This is made possible by an almost doubled distilling capacity.

Another innovation boosting cleaning performance is the ability to use ultrasound and filtration simultaneously. Here particles are discharged throughout this process cycle, as opposed to conventional systems whereby they can settle at the bottom of the work chamber before being filtered. To this end the EcoCCore pumps are equipped with variable-frequency drive units and control the volumetric flow rate in such a manner that the ultrasonic system can exert its effect. This efficient and flexible combined filtration system ensures an effective discharge of particles. Moreover, the unit comes with a frequency-controlled rotary drive for turning and high-accuracy positioning of parts. A "gentle" operating mode prevents sensitive parts from getting dropped or displaced during start-up or handling operations.

Internal heating elements have been removed from the stainless steel flood tanks. Here, the design eliminates the potential of particle trap points or chip accumulation thereby reducing any re-contamination of parts.

Operating the EcoCCore machine is simple, fast and safe due to the new 7-in. color display with self-explanatory pictographs. Thus, for instance, a temperature needs to be preset only for the first flood tank; a matching setting for the second tank is then selected automatically. Process tracking and maintenance, too, are rendered intuitive and more convenient by the integrated part visualization system. An optional full visualization capability can be integrated above the control panel.

In developing this system, Dürr Ecoclean's engineers paid particular attention to high efficiency and ease of maintenance. For instance, both flood tanks are heated entirely with thermal energy recovered from the distilling circuit. The heat input from the distilling system can be adjusted as needed in multiple stages. As a result, energy is saved while high throughput is guaranteed even with high oil drag-in rates. For the discharge of oil, a new process based on jacket heating which is fully decoupled from the distilling system ensures optimized, gentle oil evaporation. As a result, a much broader range of oil grades can be removed in safe and reliable manner. Moreover, oil encrustation requiring costly and time-consuming cleaning is avoided.

Cost savings also are achievable by the new level control system which effectively prevents a carryover of preserving medium, thereby reducing its consumption. Switching from cleaning to preserving mode can be made simply by the push of a button on the operator panel.
