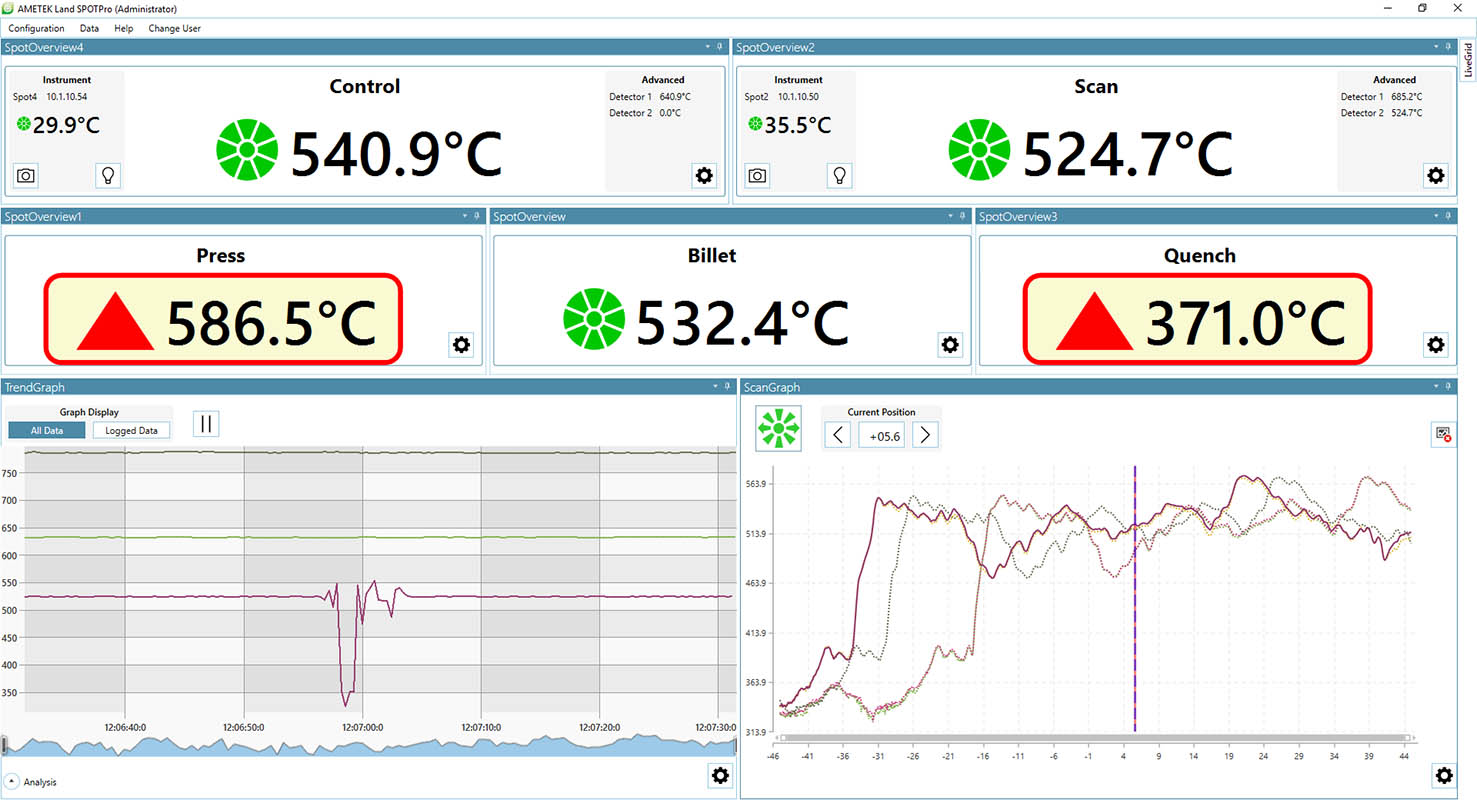

SPOTPro software provides a single point of control to configure, store, and view data for up to 40 pyrometers and actuators.
SPOTPro software provides a single point of control to configure, store, and view data for up to 40 pyrometers and actuators.
SPOTPro software provides a single point of control to configure, store, and view data for up to 40 pyrometers and actuators.
SPOTPro software provides a single point of control to configure, store, and view data for up to 40 pyrometers and actuators.
SPOTPro software provides a single point of control to configure, store, and view data for up to 40 pyrometers and actuators.

Enhanced Non-Contact IR Pyrometers

Feb. 19, 2020
High-performance devices for temperature measurements from 50 to 1,800 °C / 122 to 3,272 °F, for heat treatment, metal forming and processing, etc.

AMETEK LAND is offering an enhanced series of high-performance non-contact infrared pyrometers adapted for temperature measurements from 50 to 1,800 °C / 122 to 3,272 °F. The SPOT pyrometers’ model range meets the individual process challenges for heat treatment, metal forming and processing, and other industrial processes.

The extended functionality of the SPOT series allows users to control multiple pyrometers and actuators from one PC due to its expanded ethernet Modbus connectivity and SPOTPro software, which provides a single point of control to configure, store, and view data for up to 40 pyrometers and actuators. Users can see all of the most important data on one screen, resulting in a clearer understanding of performance processes, helping to realize Industry 4.0 connectivity.

The pyrometer’s enhancements provide additional input and output (IOX) functionality, meaning that enhanced electronic intercommunication is available as a standard for online background compensation and/or emissivity input and output. SPOT pyrometers now have an additional analogue 4- to 20-mA input and two 4- to 20-mA outputs.

A sharper and brighter video (112x110 pixels at 30 fps) is now available for viewing on the rear panel of each device. A faster and clearer video (512x288 pixels at 30 fps) can be streamed live to a PC via the pyrometers’ integral embedded web server. Both video options can be used in conjunction with the patented SPOT LED alignment system for precision alignment and focus, even in applications where the target is enclosed.

Ametek Land SPOT fixed non-contact pyrometers are designed with advanced integrated processing capabilities to make temperature measurement accurate, flexible and simple to carry out.

Offering simple single-person installation, SPOT pyrometers integrate AMETEK Land’s infrared temperature measurements into a resilient unit that is simple to install and position with the option of single cable installation. As everything is built into SPOT pyrometers, they offer a stand-alone solution that requires no separate processor. The pyrometers can be powered by either 24 to 30-V DC or Power over Ethernet. The rear display and controls allow for target viewing, temperature reading, and set-up through simple, menu-driven choices.
Learn more at www.ametek-land.com
