Cart for Automotive Assembly

Nov. 9, 2018
A cart has been developed for an automotive assembler that allows the company to hold exhaust parts for line-side presentation.

A cart has been developed for an automotive assembler that allows the company to hold exhaust parts for line-side presentation. The parts are oriented and sequenced for upcoming production. The cart's design address' material handling efficiency, operator ergonomics, and protection of the product being moved

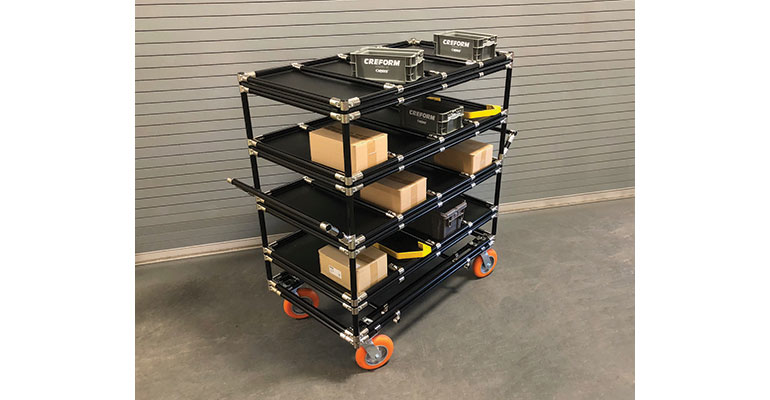

The cart consists of four shelves, with four openings per level. The open design allows for visible inventory management of all four shelves. Each of the slots is open at both ends for easy load/unload and each level features a ½ in. plastic shelf that is divided into four distinct compartments to ensure proper separation of parts, protection, and easy removal. Creform 28 mm plastic-coated pipe provides the necessary support and structural rigidity.

Parts are handled directly on the cart, eliminating the need for boxes or totes, which helps reduce waste and makes the production associate more efficient in both time and ergonomics. The cart shown has overall dimensions of 48 in. L x 28 in. W x 56 in. H and has a load capacity of up to 500 lb. It comes with four large diameter swivel casters with 8 in. wheels for easy rolling and positioning, while each end of the cart features a push/pull handle for ergonomic height and comfort. This particular cart is configured for ESD (anti-static) application, but non-ESD configuration is available.

Creform carts are custom configurable with flexible length, width and height dimension as they are built with 28 mm plastic-coated pipe and metal joints. They are available as a kit or an assembled structure or in the basic component form for a complete DIY solution.

A wide variety of pipe color options are available, as are load-bearing capacities. Multiple colors are a benefit particularly if they are used for different departments or product identification. To customize a cart other options that are available include hooks, label holders for shelf levels or shelf positions, writing surface with clip boards, to name a few. Creform carts can be outfitted with a hitch for towing or a user can add a Creform Bolt-On AGC unit and turn the cart into an AGV.
