LMSCA Length Measuring System

Oct. 29, 2021
The Wachendorff LMSCA Length Measuring System achieves a resolution of up to 0.0125 mm/pulse.

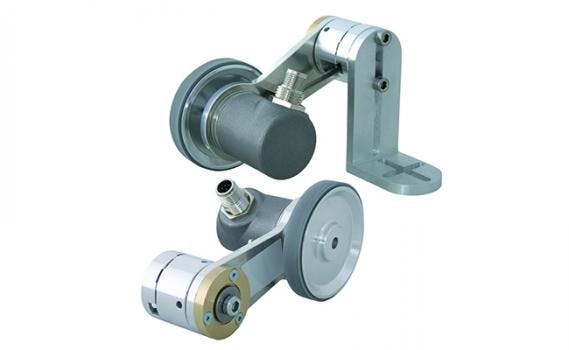

The LMSCA length measuring system is only 4.7 in. (120 mm) long and equipped with a 1.4 in. (36 mm) diameter rotary encoder. The rotary encoder can provide (depending on the order number) 1 ppr up to 16,384 ppr and thus supplies the right number of pulses for your application. The system achieves a resolution of up to 0.0125 mm/pulse.


The encoder is fixed by a clamp, which allows the connector outlet to be positioned as desired. The encoder has a radial connector outlet. A mounting bracket with two elongated holes and a cross hole offers every freedom to mount the LMSCA perfectly.


The robust construction and the durable and stable bearing of the swing arm and the encoder are designed for a wide range of applications. Wherever a speed or position is to be measured, such as on an assembly line, in continuous production/measurement or in reversing movements at greater distances, the LMSCA is suitable as a reliable sensor.

  • Space-saving and reliable complete system for position, speed, and length
  • Up to 0.0125 mm/pulse for excellent measurement results
  • Suitable for many surfaces
  • Absorbent mounting
  • Contact pressure – easily adaptable by intelligent central adjustment
  • Quickly mounted and adjusted
