PM-50 Graphical Panel Meter

Nov. 8, 2021
The PM-50 Graphical Panel Meter from Red Lion Controls allows one employee to easily run multiple machines.

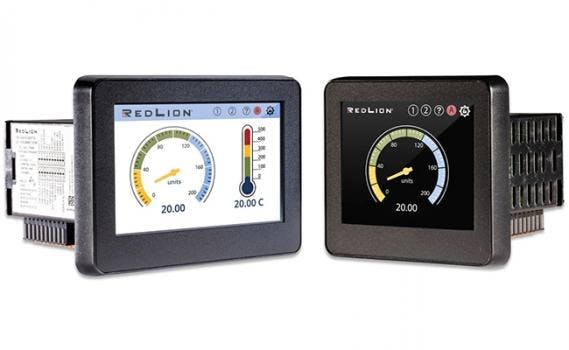

The PM-50 Graphical Panel Meter is available as a 3.5 in. (88.9 mm) or 4.3 in. (109.2 mm) graphical touchscreen display. Using simple "swipe" technology, users can easily switch between relevant screens and receive comprehensive operational data for monitoring equipment and production. Visual alerts notify the user that immediate action is necessary, either on the unit itself or via PM-50 app, available on Google Play or Apple Store.


The panel meter offers built-in Wi-Fi connectivity for users to remotely access critical workflow and process data from the confines of the plant floor to create a smarter plant floor. Wired connectivity is also an option via Ethernet and Modbus.


An on-device programming wizard, mobile app, or web browser provides an easy and intuitive setup. The PM-50 can replace a meter with a 1/8 or 1/16 DIN panel cut out. Additional capability is available with field-installable modules to provide outputs, communications, and AC power functionality when needed.

  • Smart device connectivity
  • Wi-Fi and Modus communications
  • Universal inputs
  • Dual solid state outputs
  • Display color change and status notification
  • Start-up wizard/ programming assistance
  • App for programming and monitoring
  • Modular construction for additional capability
