682A06 Universal Transmitter

June 28, 2012

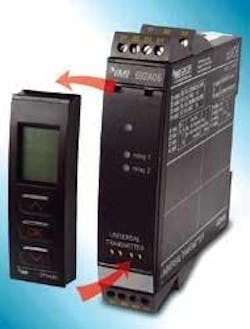

Suited for monitoring, control, and alarm requirements, this DIN rail mountable universal transmitter provides loop power and accepts input signals from vibration transmitters, as well as accepting V DC, ohm, RTD, TC linearization, and potentiometer inputs. Model 682A06 operates as a blind transmitter and delivers V DC, isolated mA, and dual Form A relay outputs. It may also be fitted with an optional detachable display module, allowing continuous viewing of measurement data.

ENVIRONMENTALTemperature Range-4 to 140°F (-20 to 60°C)ELECTRICALSupply Voltage19.2 to 300 V DCCurrent Consumption?2.5 WPHYSICALSize - Width0.93 in. (23.5 mm)Size - Height4.29 in. (109 mm)Size - Depth4.09 in. (104 mm)Weight6 oz. (170 g)
