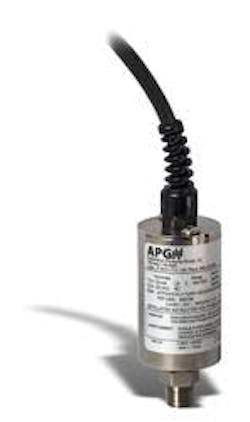

Automation Products Group, Inc. (APG) introduces PT-400 Amplified Output Pressure Transducers. PT-400 pressure transmitters provide a minimum of 10 million operating cycles with high accuracy of ±25% F.S. (B.F.S.L.), in operating temperatures from -40 to 180°F. Additionally, these sensors cover pressures ranging from 0 up to 20,000 psi, along with high burst pressure to 3x full scale (limited by the process connection) and overpressure to 2x full scale for in-process reliability. The PT-400 is designed for demanding applications in oil drilling, water and wastewater industries as well as for general use in other industries. PT-400 pressure transducers weigh just 10 oz. (283 g) and offer standard 4-20mA, 0-5 VDC and 0-10 VDC outputs. Their integrated electronics are fully enclosed inside an all-welded stainless steel housing with a 1/4-18 NPTM fitting is standard. Even with the rugged stainless steel housing, users still have access to zero and span adjustments for calibration to specific application requirements. Their rugged construction and performance attributes make them well suited for static and dynamic pressure measurement where an amplified output signal is desired. A number of options, including extended temperature compensation, higher accuracy ratings and alternate process fittings, among others, are available.The transmitters are cCSAus certified for use in Hazardous locations. Units with 0-5 VDC, 0-10 VDC and 4-20 mA outputs are rated for Class I, Div. 2, Groups C and D, and Class I, Zone 2, Group IIB hazardous locations. In addition, units with 4-20 mA output are rated for cCSAus certified for use in Class I, Div. 1, Groups C and D, and Class I, Zone 0, Group IIB hazardous locations. * Standard Pressure Ranges Gauge: From 0 to 1,000 psi Sealed: From 100 to 20,000 psi Absolute: From 0 to 20,000 psi Overpressure: 2x full scale Burst Pressure: 3x full scale or limit of process connection (whichever is less) Accuracy (linearity & hysteresis): ± 0.25% of full scale (B.F.S.L.) *Stability – One Year Zero Drift: < ±0.5% F.S. Zero Balance Adjust: ±5% of full scale Span Adjust: ±5% Life: 10 million cycles minimum *Environmental Standard Compensated Temp: 0 to 130°F (-17 to 54°C) Extended Compensated Temp (Optional): -40 to 180°F (-40 to 82°C) Storage Temp: -40 to 180°F (-40 to 82°C) Operating Temp: -40 to 180°F (-40 to 82°C) Humidity: 0 to 90% relative *Physical Weight: 10 oz. (283 g) typical Wetted Materials: 17-4 SS, 316L SS Media: Compatible with 17-4 SS, 316L SS Process Cavity Volume: 0.0353 in. *Hazardous Location Approvals: CSA/cCSAus Contract #237484 0-5 VDC, 0-10 VDC, 4-20 mA *IS: Class I, Division 2; Groups C & D; Ex nL IIB T4 *Class I, Zone 2; AEx nL IIB T4 *Ambient: -40 to 85°C 4/20 mA IS: Class I, Division 1; Groups C & D; Ex ia IIB T4 Class I, Zone 0; AEx ia IIB T4 Ambient:-40 to 85°C
