COMBINATION AIRFLOW GAS-FIRED WALK-IN OVEN FOR OVERHEAD CRANE LOADING

Feb. 9, 2010

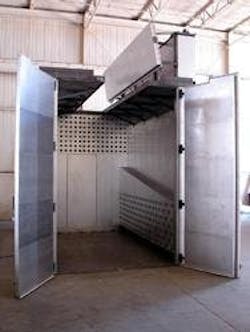

No. 1000 is a gas-fired, 500ºF (~260ºC) walk-in oven from Grieve, specially modified for overhead crane loading at the customer’s facility, in the performance of general heat processing operations.  Workspace dimensions of this oven measure 81”W x 14’D x 12’H.  600,000 BTU are installed in a modulating natural gas burner to heat the unit, while a 17,500 CFM, 15-HP recirculating blower provides combination horizontal/vertical airflow to the load. This unique Grieve walk-in oven features 4” insulated walls throughout, aluminized steel interior and exterior, air-operated crane access door atop the oven, plus all safety equipment required by IRI, FM and NFPA Standard 86 for gas-heated equipment, including a 1500 CFM powered forced exhauster.      Controls on No. 1000 include a digital programming temperature controller.• Maximum Operating Temperature: 500 F -Work Space Dimensions: 81" Wide X 14’ Deep X 12’ High
