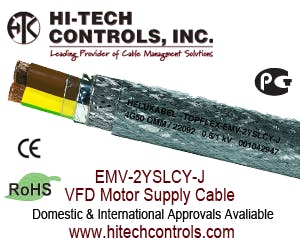

Topflex / VFD EMV-2YSLCY-J Double Shielded - MachineWorks Ltd.

Nov. 8, 2013
Power Supply Connection to Frequency Converters, Double Shielded, VFD Motor Supply CableMaterial: Special Transparent PVC  AWG: 16, 14, 12, 10, 8, 6, 4, 2, 1, 2/0, 3/0, 4/0, 300MCM, 350MCM Flexing Temperature Range:  51°F to 158°F (5°C to 70°C) Fixed Installation Temperature Range:  -40°F to 158°F (-40°C to 70°C)   Nominal Voltage:  U0/U 600/1000 V   Max  Operating Voltage:  A.C. & 3 Phase - 700/1200 V  D.C. Operation: 900/1800 V  Test Voltage:  2500V  Coupling Resistance:  Max. 250 Ohm/km  Minimum Bending Radius:  Fixed Installation for outer Ø: Up to 12mm: 5x cable Ø, >12 to 20mm: 7.5x cable Ø, >20mm: 10x cable Ø   Free-movement for outer Ø: Up to 12mm: 10x cable Ø, >12 to 22mm: 15x cable Ø, >20mm:  20x cable Ø  Insulation Resistance: Min. 200 MOhm x km  Radiation Resistance: Up to 80x106 cJ/kg (up to 80 Mrad)  Mutual Capacitance:  According to different cross-sections Conductor/Conductor 70 to 250 nF/km. Conductor/Shielding 110 to 410 nF/km Approvals: PCT(GOST)-R, RoHS, CE
