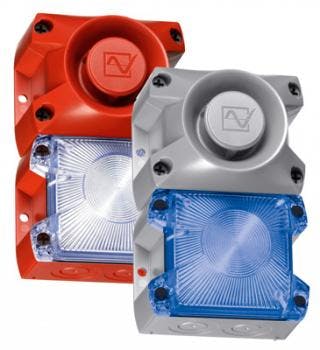

PATROL Model PA X 1-05 Audible Alarms connect tor emote alarm relays of a detector controller to warn of toxic or a combustible gas leak.
The nominal 100-dB sounder has an on-board selection of 80 different alarm tones ad a max output of 105 dB.
• 100 dB (A) nominal sound pressure level • 1 Hz single flash xenon strobe light, 5 Joules • Light operates simultaneously or independently • 80 alarm tones with 4 stages • Emit different tones based on alarm circumstance • Internal volume control • Polycarbonate/ABS blend housing • UL Type 4/4X, IP 66 ingress protection • 6.8 inch (172 mm) h x 4.3 inch (110 mm) w x 3.2 inch (81 mm) d • Lens colors: clear, white, yellow, amber, red, green, blue • Nominal operating voltages: 12 VDC, 24 VDC, 48 VDC, 24 VAC, 115 VAC, 230 VAC • Certifications: UL, cUL, CE, VdS, GL, EN 54-3 • Contact factory for option part numbers not listed below
