How To: Clear and Compliant OSHA Safety Signs

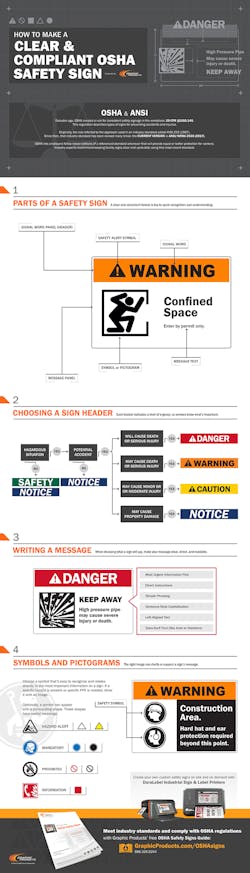

What are the rules for safety signs? What’s required? Graphic Products' infographic lays out the rules for compliant safety signs.
April 16, 2019
2 min read

OSHA and ANSI

What are the rules for safety signs? What’s required?

Decades ago, OSHA created a rule for consistent safety signage in the workplace: 29 CFR 1910.145. This regulation describes types of signs for preventing accidents and injuries.

Originally, the rule referred to the approach used in an industry-standard called ANSI Z53 (1967). Since then, that industry standard has been revised many times: the current version is ANSI/NEMA Z535 (2017).

OSHA lets employers follow newer editions of a referenced standard whenever that will provide equal or better protection for workers. Industry experts recommend keeping facility signs clear and up-to-date using this most recent standard.

Parts of a Safety Sign

A clear and consistent format is key to quick recognition and understanding.
  • Signal Word Panel (Header)
    • Safety Alert Symbol
    • Signal Word
  • Message Panel
    • Message Text
    • Symbol or Pictogram

Choosing a Sign Header

Is it a Hazardous Situation?

  • If No: use a SAFETY or NOTICE header
  • If Yes: Is there potential for an accident?
    • If No: use a NOTICE header
      • If Yes:
      • If it will cause death or injury: use DANGER header
      • If it may cause death or serious injury: use WARNING header
      • If it may cause minor or moderate injury: use CAUTION header
      • If it may cause property damage: use NOTICE header

Writing a Message

When choosing what a sign will say, make your message clear, direct, and readable.
  • Most urgent information first
  • Direct instructions
  • Simple phrasing
  • Sentence-style capitalization
  • Left-aligned text
  • Sans-serif font (like Arial or Helvetica)

Symbols and Pictograms

The right image can clarify or support a sign’s message.

Choose a symbol that’s easy to recognize and relates directly to the most important information on a sign. If a specific hazard is present or specific PPE is needed, show it with an image.

Optionally, a symbol can appear with a surrounding shape. These shapes have useful meanings:

  • (Triangle) Hazard Alert
  • (Circle) Mandatory
  • (Circle with Slash) Prohibited
  • (Square) Information

Meet industry standards and comply with OSHA regulations with Graphic Products’ free OSHA Safety Signs Guide.
