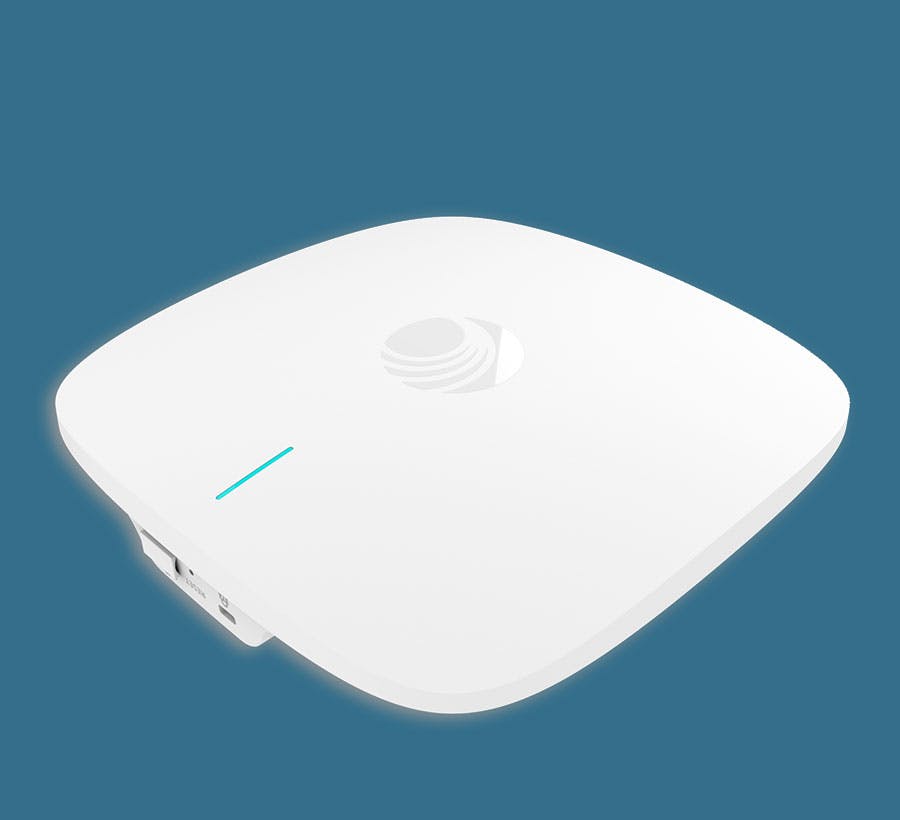

X7-35X Wi-Fi 7 Access Point Handles Dense IoT Applications

The X7-35X Wi-Fi 7 access point is a tri-radio, tri-band 2+2+2 solution, powered by Qualcomm Technologies' Wi-Fi 7 networking platform.

A 9.2 Gbps aggregate data rate provides fast downloads, seamless streaming, and lag-free experiences. Multi-Link Operation (MLO) 4096-QAM, 320 MHz wide channels, and 16 spatial streams enhance Wi-Fi 7 performance compared to previous Wi-Fi generations.

Reduced latency makes the access point ideal for high-quality applications such as virtual reality, augmented reality, and video collaboration.

Wi-Fi 7 can handle a greater number of devices all at the same time while optimizing power consumption and prolonging battery life for connecting devices. The X7-35X's integrated controller functionality reduces cost by eliminating separate appliances. Wi-Fi 7 also remains backward compatible with previous Wi-Fi standards, ensuring integration with existing devices.

The X7-35X works with the cnMaestro management system for secure, end-to-end network control. Cambium's ONE Network architecture integrates Wi-Fi, switching, security, SD-WAN, and fixed wireless backhaul into a single solution.

Access Point
Radios 2.4 GHz 2x2:2 with 802.11 b/g/n/ax/be
5 GHz 2x2:2 with 802.11 a/n/ac/ax/be
6 GHz 2x2:2 with 802.11 ax/be
BLE and Zigbee Built-in BLE or 802.15.4 radio
Max. transmit power 20 dBm w/integrated 5 dBi omnidirectional antenna gain
Matter and thread support
Data Rates 802.11be: 7.3 to 5765 Mbps
802.11ax: 7.3 to 2402 Mbps
802.11ac: 6.5 to 1733 Mbps
802.11n: 6.5 to 300 Mbps
802.11a/g and a: 6 to 54 Mbps
802.11b: 1 to 11 Mbps
Security Open, WPA, WPA2-PSK AES WPA2-ePSK/WPA2-Enterprise
WPA3-PSK (WPA3-SAE)/ePSK/Enterprise/Enterprise-CNSA/OWE
OSEN and PMF (802.11 W)
MAC authentication with local database or external database using RADIUS
Hotspot WEB authentication, Hotspot 3.0
SSID 16 SSIDs/radio, 48 SSIDs/AP
SSID scheduling
Capacity 256 clients/radio, 768 clients/AP
Max. client connections limit per SSID/radio/device

Cambium Networks, Ltd.
Hoffman Estates, IL
(888) 863-5250
