Connector for Tight Configurations

Dec. 14, 2020
prevents polarity mismatches

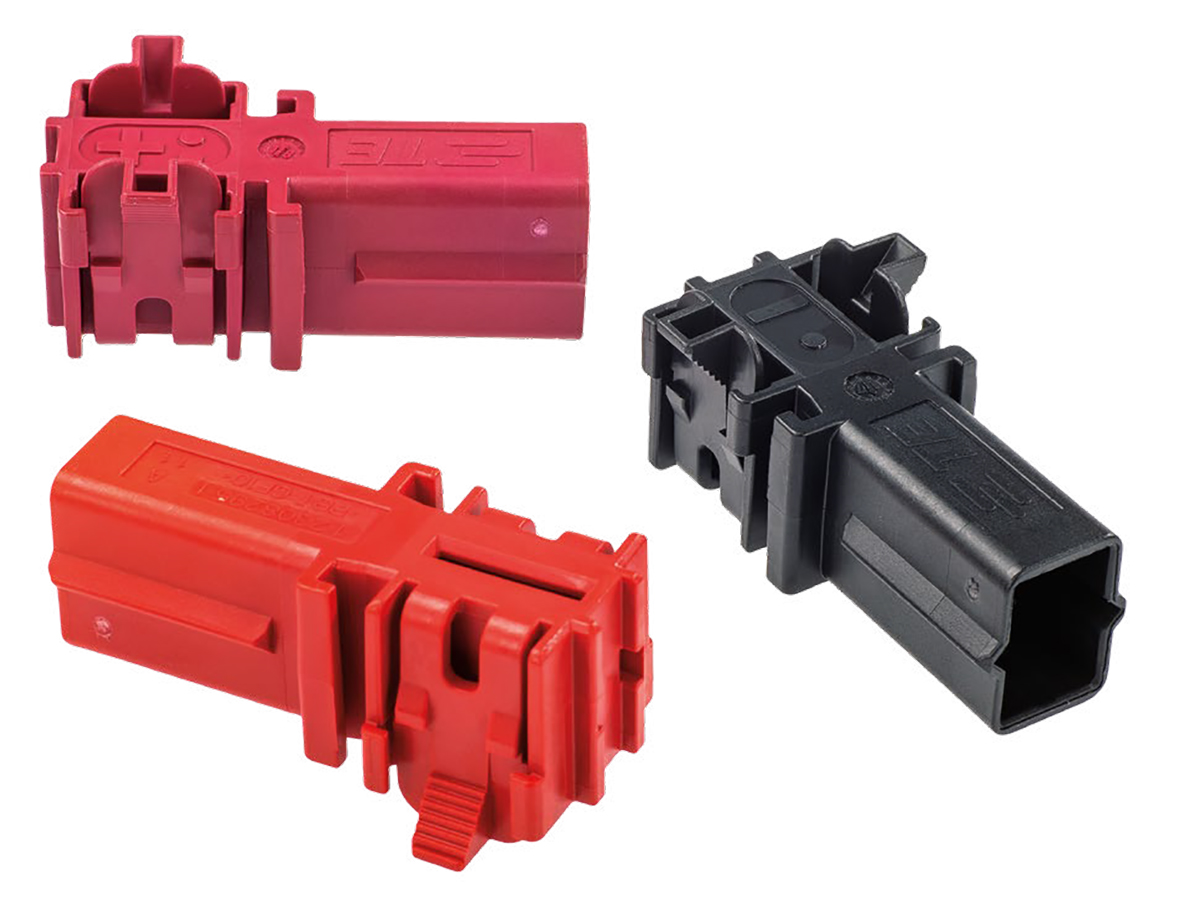

Made out of flame-retardant material, the PCON 12 connector supports in-cabin power applications with a current-carrying capability of up to 60 amps at 90°C. Thanks to its 90-deg. cable exit configuration, it can be used in extremely tight spaces inside the vehicle’s cabin.

The PCON 12 connector offers a one-position, unsealed power connection with positive and negative markings on each connector and can accept wire sizes up to 16 square millimeters to allow establishing high power connections. It also offers three polarization key mating configurations, which prevent polarity mismatches, as well as dual side-actuated snap-in locking features, which provide an audible “click” for an added layer of security.

The PCON 12 connector is perfect for use within trucking, busing, agriculture and construction, and ATV/UTV vehicle manufacturers. The primary application for this connector is inside the cabin to supply power where needed with polarity variants shown on the housings for positive and negative connections.
