Compact Power/Energy Sensor

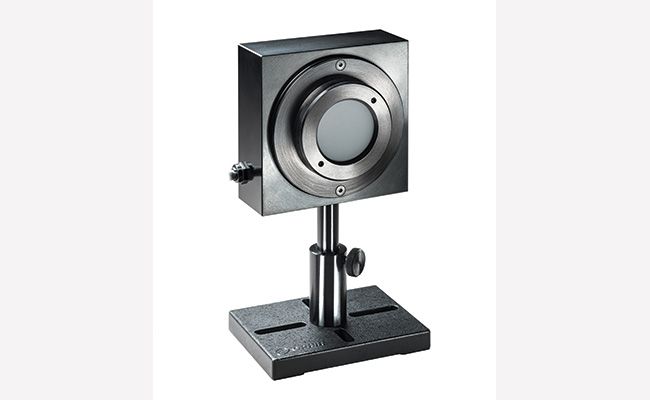

Ophir L40(500)A-LP2-DIF-35, a compact, high damage threshold laser power/energy sensor, is capable of measuring up to 4kW without the need for water cooling. The L40(500)A-LP2-DIF-35 can measure CW lasers up to 500W and pulsed lasers up to 2kJ. The compact design makes it easy to place between optical components when troubleshooting a beam path. The sensor can handle large, unfocused beams of 35 mm diameter, as well as narrow, high-density beams down to 1 mm @ 1kW.

The L40(500)A-LP2-DIF-35, like all Ophir sensors, features a "Smart Connector" interface that operates with the company's Centauri, StarBright, Vega, Nova II, and StarLite smart displays, Juno and Juno+ compact USB PC interface and EA-1 Ethernet adapter. Users can choose between a variety of data display formats, including Digital with Bargraph, Line Plot, Pulse Chart, and Real-Time Statistics. The displays also feature sophisticated logging of power and energy, statistics, histograms, and more, as well as advanced math functions. The display is automatically configured and calibrated when plugged into one of the company’s laser measurement heads.
