LGH3100 Synchronous 100 Ton Lock Grip Puller

April 23, 2024
Enerpac's LGH3100 synchronous lock grip system delivers up to 100 tons of hydraulic force for pulling medium to large-size wheels, sprockets, bearings, and other shaft-mounted parts.

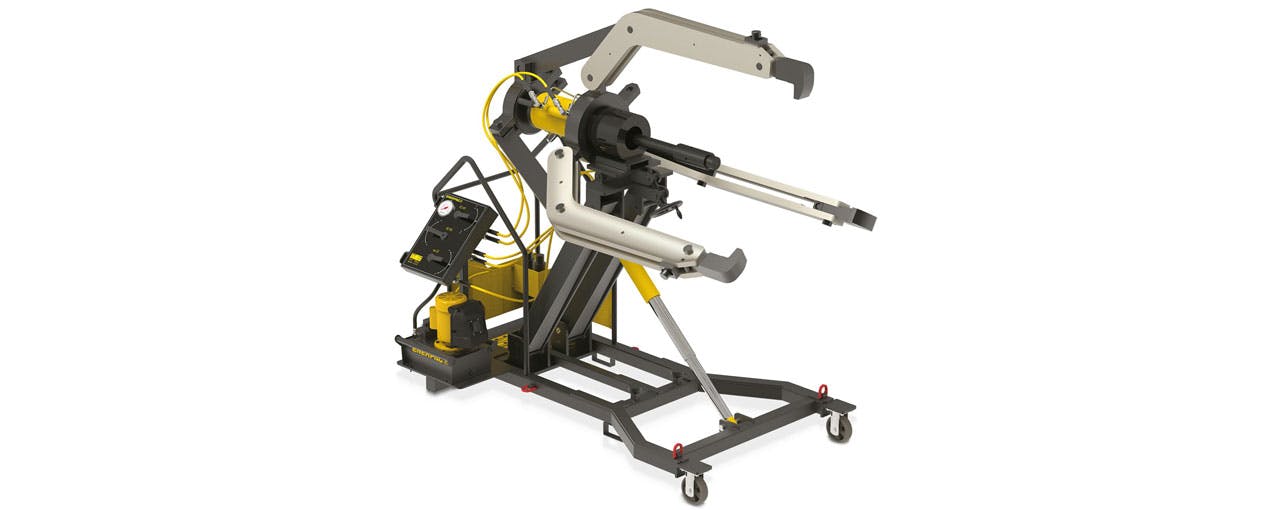

Its largest lock-grip puller system to date, Enerpac's LGH3100 synchronous lock grip system delivers up to 100 tons of hydraulic force for pulling medium to large-size wheels, sprockets, bearings, and other similar shaft-mounted parts. The puller’s self-centering closing "Lock-Grip" system moves all jaws simultaneously, allowing a single operator to safely handle the removal of large wheels, bearings, and couplers with ease.

The 3-jaw LGH3100 Lock-Grip Puller gives operators the ability to detach heavy and stubborn, large shaft-mounted components efficiently and without damage.

It's mounted on an ergonomically designed rolling cart with a low center of gravity that minimizes the physical effort needed to position and operate the puller. The cart features large industrial castor wheels and pockets for use with a forklift. The hydraulic pulling power is provided by the onboard Enerpac ZE3-Series electric 2-stage pump and remote operating control pendant.

Removed components are captured and held securely within the synchronous locking jaws. With a maximum reach of 48 in., the smooth action, hydraulic scissor lift on the LGH3100 cart provides center height adjustment from 27.5 to 66 in. When both space and budgets are tight, the 3-jaw LG3100 is easily converted into a 2-jaw, 70-ton capacity configuration.

Overall, it's a safe and productive way to remove large shaft-mounted components without damage. The combination of a smooth action scissor lift, synchronized grip jaws, and an intuitive operator station creates a stable and efficient pulling tool, allowing a single operator to remove large wheels, bearings, and couplers with ease.

Features:

  • Synchronous grip jaw movement for easy alignment
  • Lock-on jaws offer a secure grip
  • Hydraulic pulling force increases pulling capacity, improves control
  • No need to cut, heat, or torch components for removal
  • Ergonomic rolling cart with large industrial castor wheels
  • Hydraulically actuated lift cylinder on cart extends puller from center height between 699 - 1679 mm
  • Mounted on a stable cart/trolley with a wide base. Includes pockets to provide the option of using a forklift
  • Includes ZE3-Series electric 2-stage pump with remote pendant for fingertip control of the removal process
  • Includes a standard built-in pressure gauge mounted on the control panel
  • Includes 2 pushing adaptors and 2 point protectors

Max. Operating Pressure 10,000 psi
Capacity 100 tons
Puller Power Source Hydraulic
Spread 29 to 78 in. (737 to 1,981 mm)
Max. Reach 48 in. (1,219 mm)
Number of Jaws 3
Tip Clearance 2.6 in. (66 mm)
Tip Depth 3 in. (76 mm)
Weight 2,998 lb. (1,360 kg)

Enerpac
Milwaukee, WI
(800) 558-0530
www.enerpac.com
