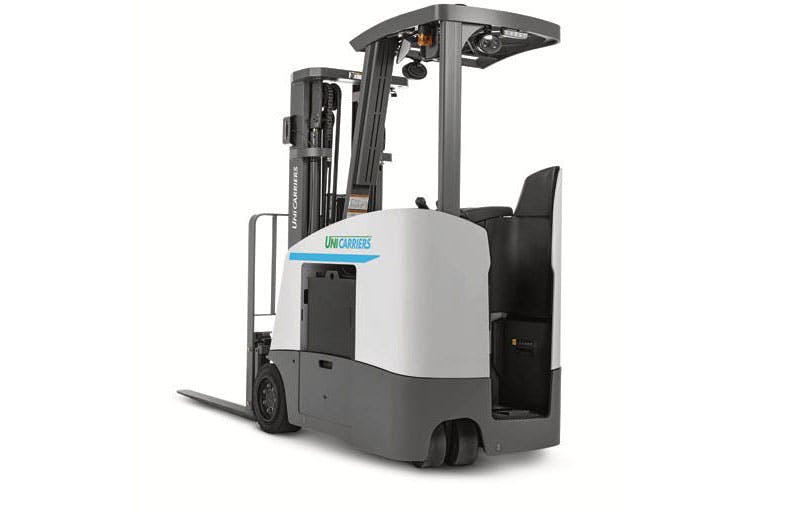

SCX N2 Series of Electric Stand-up Counterbalanced Lift Trucks

The SCX N2 Series of Electric Stand-up Counterbalanced Lift Trucks gives users a tight turning radius to reduce minimum aisle requirements and allows easier maneuverability within cramped warehouses.

Users can optimize performance based on the application, work environment, or operator experience with 3 modes to easily customize the lift truck to the application.

The control system is constantly monitoring the steering angle and speed of the truck and automatically reduces travel speeds when cornering too quickly. If the travel control is returned to neutral while traveling on a ramp, the controller will reduce and stop movement down the slope.

The floorboard has two pedals and an anti-slip ergonomic floormat. The traction pedal is required for drive functions and allows you to travel forward and reverse. The presence pedal is required for all functions. The floorboard keeps the operator's feet in a safe operating position beneath the lip of the entry. If both pedals are not depressed, the truck will not travel in any direction, helping to keep both the operator and the surroundings safe.

Automatic Steer Centering feature returns the drive tire to the forward position when the truck is powered on or off, helping to prevent the unit from jogging to the left or right upon startup. This can help reduce HSE risks if someone is standing next to the truck.

With multifunction controls and anon/off functionality, the SCX N2 provides a smooth multitasking experience.

The truck has a padded armrest and a 60-in. (1,520 mm) backrest that are electronically adjustable by up to 4 in. (100 mm) to accommodate operators of different sizes. The control handle is integrated into the armrest and adjusts both the armrest and backrest for ergonomic positioning. There is also knee and waist padding for 270-deg. cushioning to prevent discomfort and fatigue.

With a low 9.4-in. (240 mm) step height and a wide compartment entry, the SCX N2 is ideal for operators who constantly get on and off the truck.

Features:

  • 3,000, 3,500, and 4,000 lb. (1,360, 1,590, and 1,800 kg) capacity @ 24-in. (610 mm) load center
  • Max. fork height of 276 in. (7,010 mm)
  • 16 hours on a single charge
  • Quick acceleration and fast lift and travel speeds
  • All-round visibility
  • 3 customizable performance modes
  • Integrated diagnostic system
  • Passive sway control and industry-exclusive “Intelligent Curve Control”
  • Adjustable anti-fatigue floorboard with weight adjustment settings for all sizes
  • Adjustable padded armrest and backrest (4-in. (100 mm) travel)
  • High travel stability
  • 36V AC electric system with 6th generation AC induction motors
  • 1,000-h maintenance intervals
  • 2-year unlimited warranty



Model SCX30N2 SCX35N2 SCX40N2
Capacity 3,000 lb. (1,360 kg) 3,500 lb. (1,590 kg) 4,000 lb. (1,800)
Max. Fork Height 88 in. (4,780 mm)
Voltage 36
Length to Fork Face 63 in. (1,600 mm) 65 in. (1,651 mm) 70 in. (1,778 mm)
Chassis Width 41 in. (1,041 mm)
Chassis Height 88 in. (2,235 mm)
Weight 8,424 lb. (3,821 kg) 9,244 lb. (4,193 kg)




SCXN2 Series Spec Sheet


Mitsubishi Logisnext Americas Inc., UniCarriers Forklift
Marengo, IL

www.logisnextamericas.com/en/unicarriers
