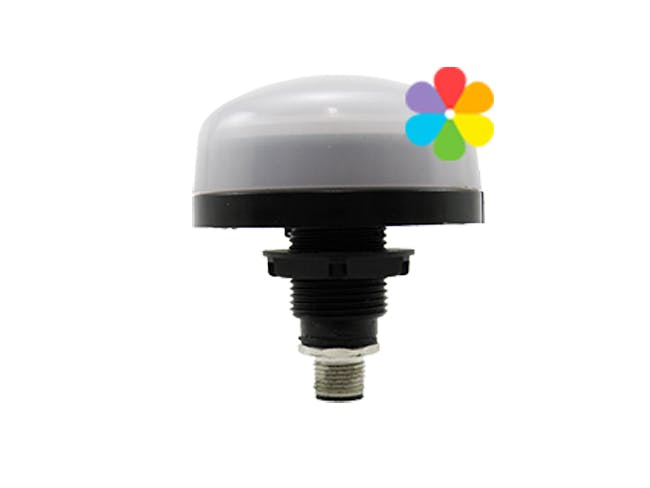

Series 189 Low-Profile Dual and Tri-Color Beacons

Norstat now offers TEXELCO's SERIES 189 low-profile beacons which are available in either bi or tri-color versions.

The beacon is designed for easy installation and is ideal for panel applications, access control, or as an alternative to stack lights. They use high-efficiency LEDs and a double with vertical and horizontal triangular grooves for optimal 360-degree diffusion and are available in 4 lighting configurations including mono, bi, tri, or multicolor. They are also highly resistant to mechanical stress, are shock and vibration-resistant, and have an anti-tampering block.

With a polycarbonate housing, they can be connected via removable terminal blocks with 3-pin or M12 5-pin connectors.

The bi-color and tri-color beacons are available in various color combinations, run off of 24V DC, and have a protection rating of IP65 with an operating range of -4 to 122°F (-20 to 50°C).


  • Double lens with vertical and horizontal triangular groove for a correct diffusion at 360-deg.
  • Red, yellow, green, and blue
  • Steady light
  • 24V DC operating voltage
  • 70 mA current consumption

Contact Norstat, Inc. for additional information, price, and availability.

Norstat, Inc.
