PowerGate E HVAC Bypass Solution

Oct. 24, 2023

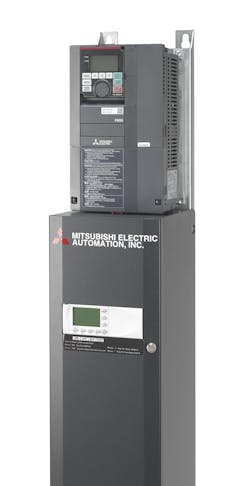

PowerGate “E” (E for Economy) is a standard bypass solution for commercial HVAC applications that require limited options and have tight budgets.

Designed for customers with limited technical requirements and tight budgets, PowerGate E offers a cost-effective alternative to Mitsubishi's PowerGate H control. It comes standard with a NEMA 1 enclosure and uses Mitsubishi's FR-F800 VFD.

Offered in horsepower ranges of 1 through 25 hp, the panels are offered in 208 to 240V or 380 to 480V power requirements. Standard features include a 2-contractor bypass system, 5% impedance AC line reactor, HOA Keypad, Alpha Controller, load abnormality detection, and RS485 BACnet MS/TP and Modbus RTU communication.

PowerGate E is configurable and all panels come with complete technical and installation documentation and are backed by a comprehensive 2-year warranty.

Features:

  • 2 contactor bypassing 230 and 480V in slimline and configuration, 1 to 25 hp
  • NEMA 1 enclosure
  • Selectable standard miniature circuit breaker (230 and 480V up to 10 hp). Molded case circuit breaker above 10 hp, rated at 5kA SCCR
  • Selectable standard fused disconnect rated at 100 kA SCCR
  • 5% impedance AC Reactor
  • Plenum rated
  • Manual or automatic bypass control
  • Electronic or simple changeover versions
  • Dual independent PID control loops
  • Real-time clock feature and alphanumeric keypad display
  • Built-in BACnet MS/TP communications
  • Bi-directional coasting motor restart (anti-windmill) capability
  • Broken belt/load abnormality detection
  • Anti-jam system to clear clogged pumps
  • Upload/download parameters using memory stick
  • Compatible with IPM motors (auto-tuning)
  • Motor flux control system saves energy and reduces motor heat and mechanical noise
