NexSys AIR Wireless & NexSys+ Outdoor Chargers for AGVs

March 6, 2024

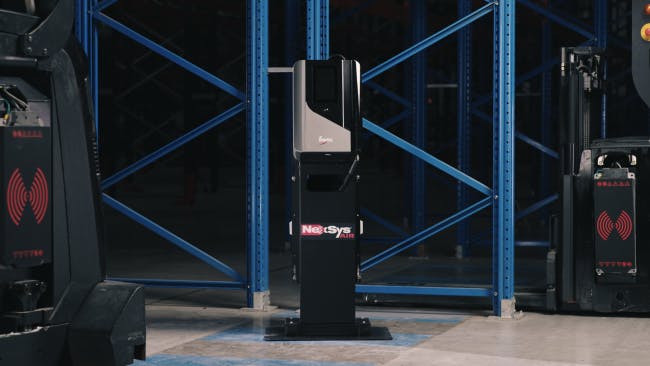

The NexSys AIR wireless charger and the NexSys+ Outdoor charger are the latest in the NexSys series of charging innovations.

Engineered for a wide range of Automated Guided Vehicles (AGVs), the NexSys AIR wireless charger has a space-saving design that provides integration flexibility while also eliminating mechanical charging connections and related maintenance. With advanced safety features, it gives operators an integrated, safe charging solution.

Designed to withstand the elements, the NexSys+ Outdoor charger is protected by an IP54-rated enclosure for protection against dust, water, and seasonal temperatures. It's ideal for farms, airports, building material yards, rental facilities, ports, cargo terminals, and other environments exposed to the weather.

Both chargers are compatible with all EnerSys battery technologies, including traditional flooded lead-acid, Thin Plate Pure Lead (TPPL), and lithium-ion (Li-ion).

Features of AIR Wireless:

  • Fully automated charging with no manual intervention
  • Contactless solution reduces sparking
  • Compatible with all EnerSys battery technologies
  • Eliminates physical wear from mechanical contacts
  • Safety features include foreign and live object detection

Features of Nexsys+:

  • Automatic bypass of faulted module: continues charging process
  • Up to 94% efficiency
  • <1oW consumption in stand-by: complies with latest global efficiency standards
  • Flexible modular design maintains peak performance and output

  AIR Wireless Nexsys+
Application AGVs AGVs, forklift/pallet trucks, floor cleaning machines, ground support
Power Output 7 to 10 kW 2 to 21 kW
Voltage 24 to 80V 12 to 80V
Communication CAN bus, Ethernet, Bluetooth, Wireless Wi-Fi CAN bus, Ethernet, RS 485,
Wireless Wi-Fi




EnerSys
Allentown, PA
(484) 244-4150 (ext 6201)
www.enersys.com
