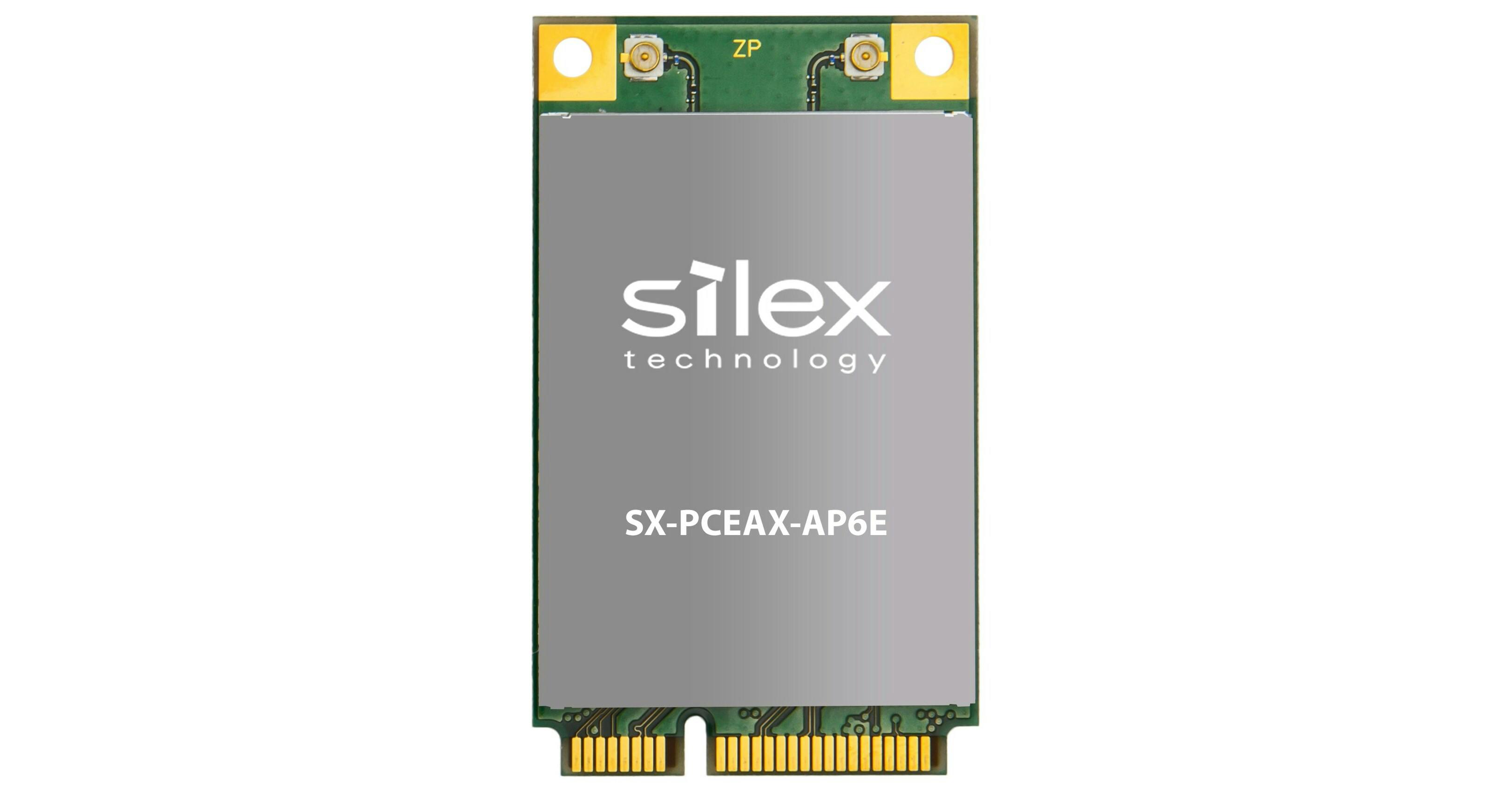

SX-PCEAX-AP Series of Wi-Fi 6/6E Modules to Seamlessly Upgrade Any Existing Network

Wi-Fi 6/6E modules targeted towards Access Points/infrastructure devices, the SX-PCEAX-AP Series modules are embedded wireless LAN modules using Qualcomm's QCN9072 chipset, ideal for access points, gateways, and routers in medical and industrial applications.

Designed for data-intensive applications and the expanding IoT landscape, the modules are ideal for any OEM customer who is looking to upgrade their existing access points or network infrastructure to the latest Wi-Fi standard. Combining both the Wi-Fi 6 and 6E modules can seamlessly provide a Wi-Fi access point compatible with 2.4GHz, 5GHz, and 6GHz bandwidths.

With support for Wi-Fi 6E, users can enjoy lightning-fast speeds, reducing latency and providing a seamless connection experience for high-bandwidth applications. The module leverages the additional 6GHz band, alleviating network congestion and ensuring optimal performance even in densely populated environments. The modules' standard PCIe form factor saves time and development costs to upgrade existing devices.

Security is paramount, and the SX-PCEAX-AP6E integrates robust security protocols to protect against evolving cyber threats, safeguarding sensitive data.

Designed for easy integration, the module is suitable for a wide range of applications, including IoT devices, smart home solutions, industrial automation, and more.

Chipset QCN9072 QCN9072
Wi-Fi Band Frequency 2.4/5 GHz 6 GHz
Host Interface PCI Express 3.0
WLAN IEEE 802.11a/b/g/n/ac/ax (2x2) IEEE 802.11ax (2x2)
Antenna MHF Connector x2
Operating Voltage 3.3V
Operating Environment -40 to 185°F (-40 to 85°C), 10 to 95% RH -40 to 185°F (-40 to 85°C), 15 to 95% RH
Storage Environment -40 to 194°F (-40 to 90°C), 10 to 95% RH
Dimensions 1 x 2 x 0.2 in. (30 x 51 x 4.5 mm)
Package Type Mini PCI Express Card
Certifications JP, US, Canada, EU, UK


SX-PCEAX-AP/6E Spec Sheet
