65xxN/69xxN IoT Wireless Pressure Sensors for Monitoring Challenges

TE Connectivity (TE) has added two wireless pressure sensors to its portfolio: 65xxN wireless pressure sensor for short-range coverage, and 69xxN wireless pressure sensor for long-range coverage. These sensors meet the demand for miniaturized, digital, low-power, and wireless sensors that operate in challenging environments.

Designed for periodic condition monitoring, the 65xxN wireless pressure sensor uses BLE (Bluetooth low energy) 5.3 communications to support localized data collection and transmission. It offers long battery performance and adapts to various pressure conditions. It's also compact and easily fits into tight spaces.

“TE’s newest wireless pressure sensor offerings seamlessly align with the foundational principles of Industry 4.0 and the IoT-driven smart factory model while as the same time bringing practical, efficient solutions to industrial monitoring challenges and helping to keep machinery operational." — Andrew Smith, product manager at TE.

Engineered with LoRaWAN technology, the 69xxN wireless pressure sensor offers long-range coverage over several kilometers, low power consumption, and scalability to support numerous devices within a single network. This compact sensor fits into different environments, from tight spaces to remote infrastructures, and offers a wide pressure sensing range, reducing the need for multiple sensors, and simplifying system integration. Its extended battery life and customizable transmission thresholds lower maintenance frequency and increase reliability.

With security features for data protection and certification for hazardous areas, both the 65xxN and 69xxN series wireless pressure sensors are safe for critical applications and high-risk areas.

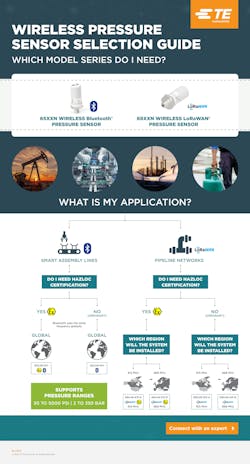

TE Connectivity wireless sensors infographic

Features:

Universal communications via Bluetooth
Multiple wireless communications options including LoRaWAN (868 MHz (EU) / 915 MHz (NA) and Bluetooth Low Energy (69xxN)
Lightweight and small form factor
Programmable thresholds for event detection
Easy device configuration via TE SensorConnect smartphone application
Explosive atmosphere certified (some models)
Programmable and configurable
BSPP/NPT thread options available
2+ year typical battery life @ 10-s advertisement/measure intervals in temps from -4 to 104°F (-20 to 40°C) [65xxN]
8+ year typical battery life @ 1-min advertisement/measure intervals in temps from -4 to 104°F (-20 to 40°C) [65xxN]
18-month typical battery life @ 1-min Tx/measure intervals in temperatures from 32 to 104°F (0 to 40°C) [69xxN]
12-month typical battery life @ 1-min Tx/measure intervals in temperatures from -4 to 104°F (-20 to 40°C) [69xxN]
8-year typical battery life @ 10-min Tx/measure intervals in temperatures from 32 to 104°F (0 to 40°C) [69xxN]
IP66/IP67
Withstands up to 50 g shock and 8 g vibration
Battery model SAFT LS17330 included
IS Class I, Division 1, Groups A, B, C, D, T4
Class I, Zone 0, AEx ia IIC T4 Ga
Ex ia IIC T4 Ga; Ta

Price:

65xxN: Starting at $391
69xxN: Starting at $523

Applications/Industries:

Smart assembly lines
Pump Monitoring
Gas cylinders
Oil well monitoring
Pipeline monitoring
Corrosive fluids and gas measurement systems
Industrial process control and monitoring
Refrigeration systems
Hydraulic/pneumatic systems
Smart logistics
Agriculture equipment
Energy generation and management
Tank levels

	65xxN	69xxN
Sensor Type	Wireless Pressure Transducer
Pressure Type	Absolute, Compound
Frequency Band	2,400 MHz	868 to 915 MHz
Pressure	35 to 350 bar (500 to 5,000 psi)	7, 20, 35, 350 bar (100, 300, 500, 5,000 psi)
Operating Temp.	-22 to 167°F (-30 to 75°C)
Proof Pressure Range	3X rated
Output Signal	Bluetooth	LoRaWAN
Pressure Accuracy	±0.1% FSO, ±0.25% FSO
Hazardous Area Approval	Intrinsically Safe, No
Sensor Options	IP67 Protection
Port Fitting	1/4-18 NPT, 1/4-19 BSPP
