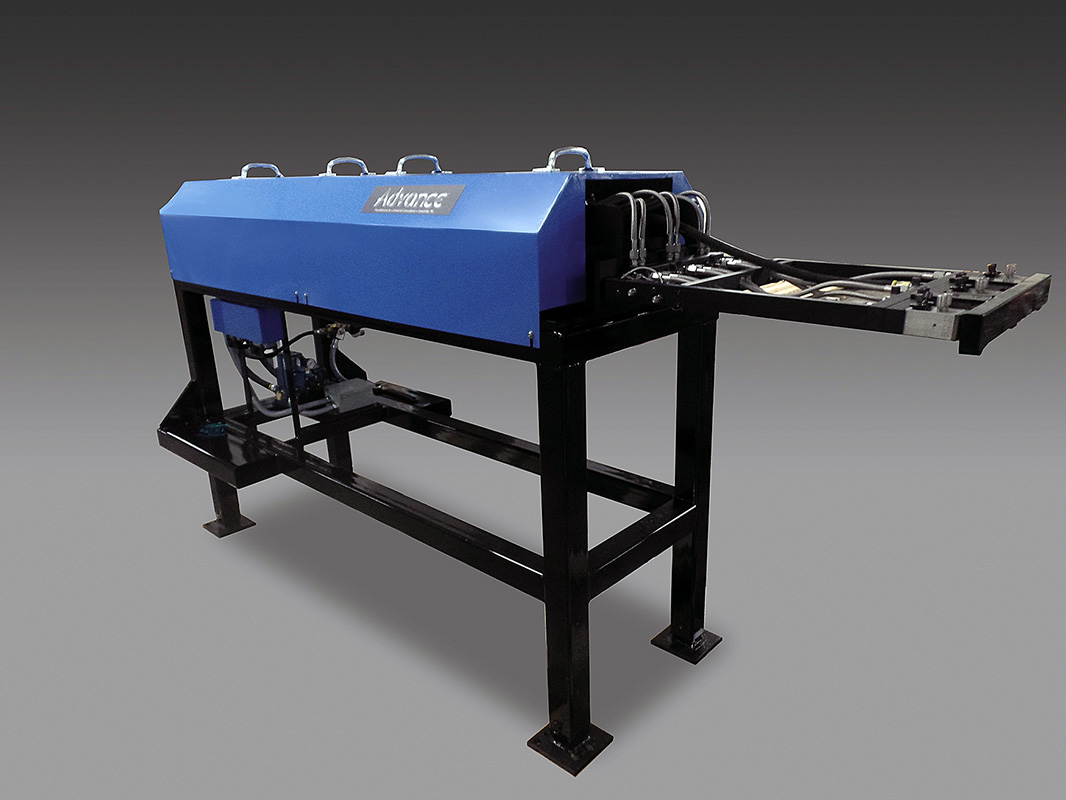

INDUSTRIAL INNOVATIONS, a provider of industrial lubrication and automation systems, announced the availability of its new horizontal Advance Forge Reciprocator featuring the company’s Spra-Rite™ technology, a patented lubricant application system with individually controlled injector valves for controlling up to 48 nozzles with individual settings, for skip cycle counting, delay spray, volume control, and length of spray.
The electronic servo-driven controls package and high-speed linear assembly of the new reciprocating sprayer achieve precision and smooth operation at speeds of 50 in./second. This promotes faster cycles, improved part quality and reduced lubricant consumption.
This new automated sprayer was developed specifically for both graphite and synthetic release agents, and for use in harsh environments.
The user-friendly controls system features an 8-in. touchscreen with built-in prompts, and can be pre-programmed with up to 20 separate dwells, sweeps, and speed functions for lubrication and blow-off, which are entered through the operator interface.
There is storage capability for 100 recipes, for quick recall of die setups.
The unit has up to three separate spray and air blow-off zones for lubricating and cleaning the die surface. Flow monitoring of multiple spray nozzles with feedback to the operator enables precise application and control of lubricant volume.
The horizontal sprayers have a machine stroke of 24-in. to 48-in. and come with customer-designed spray manifolds for pinpoint accuracy. They operate from 208/230 voltage.
Designed-in pockets make it easy for fork trucks to pick up and move the systems.
Learn more at www.industrialinnovations.com
