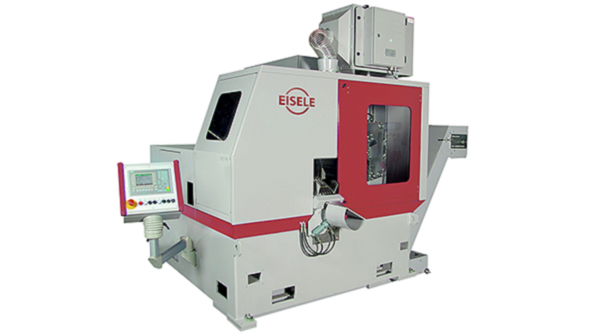

With a blade diameter ranging from 16.5 to 20.5 in., the HCS-180 cuts round stock up to 7 in. in diameter.

Automatic Carbide Circular Cold Saw

July 22, 2014
High-performance machine for 90° ferrous material cutting Cut high-alloyed, heat- resistant steel Blade speeds, 20 to 250 rpm Pneumatically controlled cooling system

Behringer, suppliers of bandsawing machines and circular cold saws, introduced the HCS-180 high-performance automatic carbide circular cold saw for cutting ferrous material at 90 degrees. The new saw is recommended for cutting high-alloyed, heat- resistant steels along with other ferrous materials. With a blade diameter ranging from 16.5 in.  (419 mm) to 20.5 in. (520 mm), the new HCS-180 saw provides fast, precision cutting of round stock up to 7 in. (180 mm) in diameter.

The fully automatic HCS-180 is designed for maximum yield applications. It is equipped with a PLC-controller that makes it possible to program the number of pieces to be cut, length, discharge handling, and other parameters. Also included are two non-contact light barriers that detect the leading and tail edge of the material being cut, and then send start and end data to the PLC.

The Behringer machine uses long lasting carbide-tipped disposable saw blades. A 34.8-HP frequency controlled blade drive allows blade speeds of 20 to 250 RPM, which accommodates most wet or dry sawing applications.

Behringer's machine design helps to ensure long blade life. Vibration absorbers mounted between the machine base and the sawing unit further enhance long blade life by eliminating vibrations which also produces exceptional cut quality. Blade life is extended further by sensor-driven cutting pressure monitoring with worn saw blade interrupt feature.

The NC controlled sawing head with ball-screw spindle is driven by a servomotor with integrated encoder for precision movement. The head is mounted on pre-tensioned linear ways angled at 25 degrees to ensure quality cuts. Pressure-balanced, controlled blade movement helps to maintain consistent production rates and improves cutting accuracy on both solid and tubular material.

There is an automatic material retract feature on the input side, and an automatic material release on the output side. This protects the carbide blade when the saw head returns to its "Home” position after completing a cut.

The gripper feed unit is powered by a servo-driven ball screw spindle. This provides an infinitely variable feed or reverse feed rate of up to 39.3in.  per second. Single stroke capacity is 0.314-39.3in., and multiple stroke is up to 393.6 in. (32.8 ft.)

To ensure optimal alignment of material entering the gripper clamping area, Behringer can add a material shifting device to the gripper feed unit. This option facilitates smooth handling of material to help prevent marking or scratching and is recommended for high volume jobs.

The HCS-180 features a pneumatically controlled micro-spraying cooling system that continually mists the carbide blade to prevent heat build-up. Optional on the HCS-180 is a multi-fluid cooling system that provides additional protection against heat build-up. The multi-fluid cooling option allows for extremely fast cutting operations or for duplex materials.

Behringer HCS saws feature a cutting stage designed to direct chips directly into an automatic chip conveyor. The chip conveyor is integrated with the coolant reservoir and coolant pump to permit rapid disposal of both chips and coolant. The conveyor is readily removable for easy cleaning.

The solid Behringer saw frame design reduces vibrations and enhances torsion resistance during cutting. This feature, coupled with an active chip cleaning system, improves saw blade life.

Visit  www.behringersaws.com
