Reliability teams running ultrasound programs across multiple sites and assets often collect more data than they can consistently analyze, prioritize, or act on. UE Systems' UE ONE is a connected ultrasound platform that integrates data collection, analysis, AI-assisted workflows, alerts, dashboards, reporting, and administration into a single environment—structured around four layers: connected products, core components, platform workflows, and embedded intelligence.

Data flows from UE Systems field instruments into the platform, where it is analyzed, organized, and enriched with intelligence. The platform supports portable instruments, fixed scheduled monitoring, fixed always-on monitoring, and condition-based lubrication products as data sources.

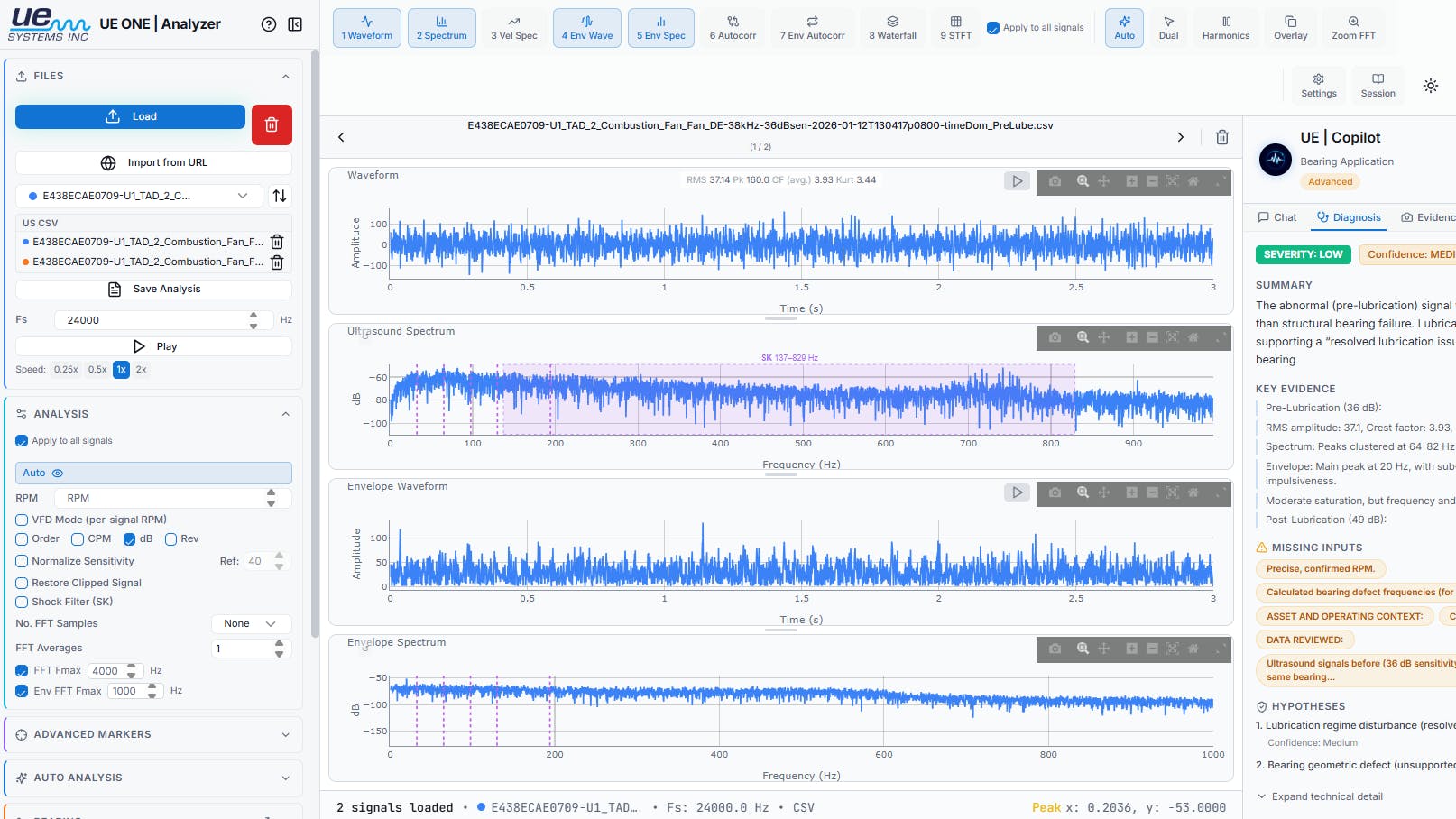

UE ONE | Analyzer provides a purpose-built environment for advanced ultrasound review, with waveform, spectrum, envelope, harmonics, and bearing-context tools. Analyzer includes a bearing database, auto analysis, envelope and spectrum analysis, shock filter, and normalized sensitivity functions to build diagnostic evidence from signal data.

UE ONE | Copilot operates inside the analysis workflow to assist with interpreting waveforms, spectra, and envelope data. It generates evidence summaries, flags missing inputs, and suggests follow-up questions and comparisons to move analysis forward.

UE ONE | Pattern Intelligence uses machine learning to identify assets that may need closer attention by learning baseline behavior, detecting anomalous change, and ranking assets by priority. It supports temporal, peer-to-peer, and outlier anomaly detection methods and generates a prioritized action plan. A guided asset fit assessment recommends the appropriate detection model for each machine population.

UE ONE | OnTrak Hub connects bearing health data from OnTrak condition-based lubrication instruments to lubrication response workflows. It provides continuous bearing friction monitoring, connected alerts with context, work item tracking, and program reporting.

RASTx-8 captures scheduled dB and waveform data from up to eight remote access sensor points, supporting fixed locations that are elevated, guarded, or difficult to access on a routine basis. 4Cast provides always-on monitoring across up to four ultrasound channels, capturing data by schedule or trigger for intermittent events and batch assets where signal timing is critical.

The Ultraprobe 15,000 portable instrument captures ultrasound, dB, temperature, images, spectrum views, route context, and asset history in the field, with on-board analysis and Wi-Fi sync to the platform.

Embedded intelligence includes Anomaly Detection, which identifies signal changes outside expected patterns, and Baseline Advisor, which uses AI to recommend baseline values and alert thresholds from condition monitoring data.

UE ONE deploys across cloud, customer-managed, and on-premises environments.

Features:

• 4-layer architecture: connected products, core components, platform workflows, embedded intelligence
• Deploys across cloud, customer-managed, and on-premises environments
• Analyzer: waveform, spectrum, envelope, harmonics, and bearing-context analysis tools; bearing database; auto analysis; shock filter; normalize sensitivity
• Copilot: AI-assisted evidence interpretation, evidence summaries, missing input flagging, next-step guidance
• Pattern Intelligence: temporal, peer-to-peer, and outlier anomaly detection; fleet health ranking; priority action plan; guided asset fit assessment
• OnTrak Hub: continuous bearing friction monitoring; connected alerts; work item tracking; lubrication response workflow; program reporting
• RASTx-8: fixed scheduled collection; up to 8 remote access sensor points; captures dB and waveform data
• 4Cast: fixed always-on monitoring; up to 4 channels; schedule or trigger capture; simultaneous channel context
• Ultraprobe 15,000: portable; captures ultrasound, dB, temperature, images, spectrum views, route context, and asset history; on-board analysis; Wi-Fi sync
• Anomaly Detection: identifies signal changes outside learned normal behavior
• Baseline Advisor: AI-recommended baseline values and alert thresholds
• Platform workflows: routes, analysis, alerts, dashboards, reports, administration
• Route adherence tracking with real-time coverage and missed-point visibility
