A stainless steel version of the DryLin W compact linear guide system is corrosion-resistant, self-lubricating, and maintenance-free.

Stainless steel DryLin W is ideal for harsh environments such as underwater, chemical, and wash-down applications, or for applications ranging from packaging to food & beverage, textile, and marine. It can also withstand extreme temperatures up to 482°F.

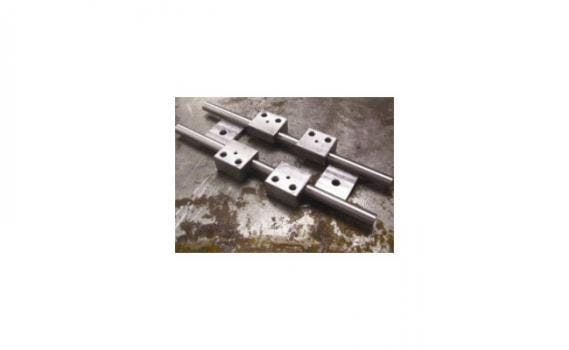

Unlike traditional stainless steel ball-bearing systems, DryLin W is made with solid 316 stainless steel, which maximizes both performance and corrosion resistance. Stainless steel DryLin W is available as a combination of two supported round shafts in one bolt-on profile, or a split rail configuration. Each option provides its own unique advantages.

The single profile round-rail option lowers the cost of an application and eliminates time-consuming shaft alignment and assembly. The split rail option emphasizes design flexibility. If the acting forces project beyond the slide or space is limited, the split rails can be assembled at a 90-deg. angle. The stainless steel carriages include plastic glide elements made of iglide J.

For higher temperature resistance, the plastic liners can be made from iglide T500 for the 20-mm size. DryLin linear guide systems are an ideal replacement for recirculating ball bearings due to their maintenance-free, oil-free, and self-lubricating operation. Unlike ball bearings, contaminants cannot build up in DryLin. This prevents malfunction and shaft damage. DryLin bearings and guide systems have a low coefficient of friction and are corrosion-resistant and wear-resistant.
