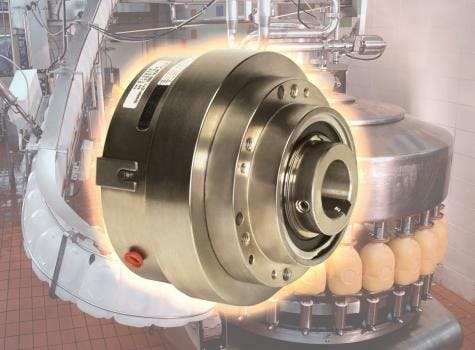

5HP-E Series Enclosed, Pilot-Mount Tooth Clutches
Nexen 5HP-E Series Tooth Clutches deliver fast, no-slip engagement for washdown applications where high torque is required. The completely enclosed tooth clutches provide positive torque transmission and feature a nickel-plated exterior and rotary seal to withstand wet, corrosive environments common to food and beverage processing applications.
The 5HP-E Series Tooth Clutch models offer a positive, single-position tooth interface for synchronized engagement and feature a torque range of 500 to 12,000 in-lb with instantaneous torque at engagement up to 7,100 in-lb. The nickel-plated exterior and rotary seal meet NEMA 1.26.5 water protection standards.
Flexible 5HP-E Series Tooth Clutches are compatible with timing belt sprockets, chain sprockets, belt pulleys, or couplings for use in a broad range of applications. Tooth clutches can be simply flange- or pilot-mounted and are controlled with a 3-way solenoid, pneumatic valve.
Optional solid-lube and/or stainless steel bearings are available, as well as optional single- or double-flex, nickel-plated couplings with high-misalignment capabilities for in-line shaft connections.
Features:
- Mounting on driving or driven shaft
- Bearing-mounted piston; air inlet does not rotate
- Torque proportional to control pressure
