Case Study: Industrial Cleaner Uses Sister Company's Cleaning System

Sept. 5, 2018
Kipp Umwelttechnik GmbH cleans cooling towers with the JetMaster system, developed by the sister company mycon GmbH.

Kipp Umwelttechnik received a customer order for the cleaning of cooling towers. Specifically, the outer tube surfaces of a cooling tower were heavily affected by very hard limestone that had completely settled around the tubes. The entire bundle of tubes has a height of 1,200 mm, with a base of about 8m². Previously unsuccessful cleaning attempts were carried out by the client. In addition, by a cleaning experiment previously carried out with chemicals, the galvanizing of the pipes had been severely damaged or completely removed.

Kipp Umwelttechnik relies on high-performance special equipment when cleaning heat exchangers

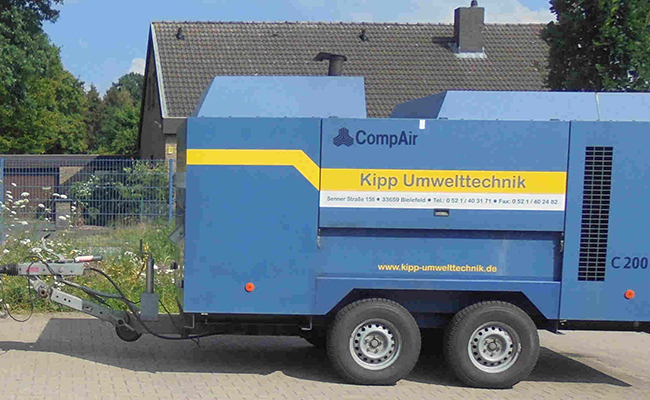

Kipp Umwelttechnik used the combination system JetMaster of the sister company mycon with a special nozzle for the initial cleaning of this cooling tower. For the production of compressed air, a high-pressure compressor with a capacity of 20 cbm-min / 14 bar was used to minimize pressure loss due to the long pipes, caused by the parking distant of compressor.

When using the system, even when removing hard limestone layers, the zinc layer is not damaged, which in this cooling tower, however, did not play a major role due to beforehand the severe damage caused by the chemicals usage.

The JetMaster system was able to remove the scale of the lime with customer satisfaction in just one working day. Kipp Umwelttechnik performed the cleaning completely alone. The cooling tower only had to be taken out of service by the client shortly before the work start.

Cleaning of heat exchangers / cooling towers with guaranteed success

Kipp Umwelttechnik offers a complete cleaning service with guaranteed success for heat exchangers / cooling towers of all types. The cleaning success is checked with the customer after the cleaning of a partial area and the cleaning is continued with the same standard if successful. If no sufficient success is visible, the client pays nothing.

In the occasion of hygiene problems, our chemical engineer will gladly advise you on any additional measures that may be necessary.

For larger areas Kipp Umwelttechnik offers with its sister company mycon (mechanical engineering) partial or full automation solutions of all sizes for the cleaning of heat exchangers. The constant availability of an automated cleaning system allows considerable energy savings and / or an improved process flow. Automated cleaning systems of all sizes are also available for rent.

About the Author

mycon GmbH

Benefit from our competence in cleaning, decoating, and cooling. We offer you the correct solution. mycon GmbH, a sister company of the service company Kipp Umwelttechnik, develops, manufactures and markets new products and automation technologies. Many years of experience in industrial service have resulted in many system developments and patents, some with international validity.
