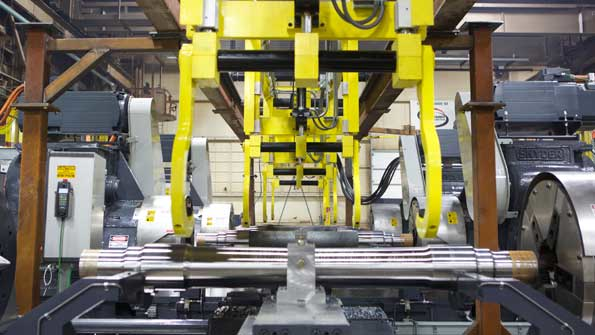

Standard Forged Products chose Euro Machinery Specialists to remanufacture a three-stage machining line designed 50 years ago to finish rail and locomotive axles.

Modernizing Controls for Finishing Forgings

May 13, 2015
A remanufactured three-stage lathe line gets a boost in productivity thanks to a state-of-the-art CNC concept Hard-surface machining CNCs, motors, and AC drives Rebuilt overhead gantry

Rebuilding equipment is standard practice for forging operations – but updating vintage machinery with advanced automation can be a revelation for operators so well schooled in traditional manufacturing processes. Standard Forged Products, McKees Rocks, PA, enlisted Euro Machinery Specialists to remanufacture a three-stage lathe machining line that has been used to finish rail and locomotive axles for at least 50 years. Owing to the change from hydraulic tracer to advanced CNC control, DC headstock to synchronized AC drive, and hydraulic to AC axes servo motion, converting steel billets into hammer forged finished axles has been substantially improved.

“Standard Forged Products was looking for a significant productivity increase to bring the ‘three stage’ system back to OEM-level cycle times, due to punishment from many years of heavy-duty machining around the clock,” recalled Karl Engelke, vice president of Euro, Menomonee Falls, WI. “Peak operating performance was originally about a four-minute cycle time for a completely machined axle, start to finish. Over the years, cycle times dwindled and, when we received the project, cycle time was over seven minutes per axle, due to numerous mechanical and electrical problems and failures — therefore, this Snyder line was in need of a total overhaul and remanufacture.

“Our overall three-year contract with Standard Forged Products for this project required complete rebuilding, from the ground up,” Engelke continued. “Since the old iron was extremely sound, it was an ideal candidate for remanufacture, including everything from the key motion control package, consisting of three Siemens Sinumerik CNCs, Simotics motors and Sinamics drives at each lathe, plus Simatic PLC and HMI as the master of the entire line.”

He noted that on all three machines, four-inch diameter ballscrews and bearing blocks capable of over 44,000 lbs. of thrust were designed to replace the original hydraulic cylinders. The line required complete rebuilding of all headstocks and hydraulic chucks, replacement of most gears, shafts, and Timken bearings. All new hydraulic and lubrication systems were designed and integrated.

Other notable improvements were double-way wiper systems and special sheet metal guarding to protect the operators and machine components from the heavy chips. The entire project required over 11,000 man-hours of work.

In addition to remanufacturing the three lathes, Euro re-engineered and provided an entirely new overhead gantry workpiece shuttle system. This massive automated system, having been converted from hydraulic to servo operation, performs barcode scanning and moves the raw forged axles into the roughing lathe’s Stage One position for left and right journal section machining. Then, it transfers the workpieces in sequence to the next two machining stages for center-section roughing (Stage Two) and finish cut (Stage Three) — finally transferring and offloading the completed workpieces to the holding area.

The turning line synchronizes left-head and right-head, 150-hp Simotics M-1PH8 motors for both Stage One and Stage Two roughing lathes.  According to Engelke, the rough cut is “perhaps the most aggressive and impressive cutting operation in the machine tool industry today.”

On each tool block, multiple large diameter button nose cutting tools with high carbide content plunge into the forging at a minimum ½-inch depth of cut at approximately 0.200 inch-per-revolution. The high-carbon tool allows for extremely high tool pressure and resists high temperatures, which puts the heat into the chip, not into the cutting tool.

Standard Forged Products has the cutting formula down to a science — however, the challenge was to optimize the process even further, thanks to the incredible power and torque from the headstock motors and newly designed large ballscrews, gear reduction and servomotors versus the old hydraulics systems.

Because the axles are hammer-forged, the surface is extremely difficult to break and machine with any consistency; therefore, tool stability and rigid machine components are critical to the integrity of the process.

Adaptive Control for Out-of-Round Hammer Forgings

In Stage Two, the center section of the axle is machined with an overall first finish pass. Stage Three involves the final finish pass with a single headstock, 75-hp Simotics M-1PH8 motor driving the workpiece. In operation, while the customer spec for the axle surface finish is 250 RMS, the line is currently holding 124 RMS consistently, Engelke noted. Every workpiece in process is subject to form gage and profilometer readers for accuracy. Two semi-trailers full of chips are produced by this line, every day.

Each stage’s motion control is run by a Sinumerik 840D sl CNC, the Siemens flagship controller. An HT2 handheld unit is provided at each station for easy setup and commissioning.

Dual-channel (X, Z and U, W) cutting paths in Stage One necessitated a higher-level controller for accuracy, according to Cary Ramthun, CNC programmer and controls engineer at Euro. “We were challenged by the large amounts of power and torque required to perform this machining operation in each of the three stages,” Ramthun explained, “plus the overhead gantry system and other materials handling devices all required precise integration. We worked with Siemens to achieve the entire motion control and automation package. The movements are seamless and completely safe for both the customer’s operators and every component of the machine stages.”

Ramthun added: “Siemens programmers worked with us and Standard Forged Products programmers to accomplish the final solution on this project.” He called particular attention to the Siemens CNC’s adaptive control feature, which accommodates the out-of-roundness condition often found on hammer forgings. The Profinet coupler provided with the Sinumerik 840D sl syncs the gantry and the machine stages in a series of “handshakes,” with no hard-wiring, only sub-network connections are required, plus full isolation of the networks.

Engelke detailed the engineering required for the project presented considerable challenges, as well. “We were working with 1960s machinery built by a company that’s no longer in business. We started by reverse-engineering each individual machine component in our CAD system. Doing so allowed us to design, engineer, and adapt new modern mechanical and servo-driven solutions, as well as provide the customer with complete, highly detailed machine documentation, such as manuals with assembly drawings, spare parts lists, hydraulic, lubrication and electrical system schematics. Our customers find such documentation invaluable to their operations for service and troubleshooting of the machine tool.”

In addition to the Sinumerik CNC, Simatic HMI, and Simotics motors on the line, the 46-ft. long control cabinet features Sinamics booksize and chassis drives, active line modules, Sitop 24V DC power supplies and all auxiliary hardware for the machine and gantry control.

Euro Machinery Specialists was founded in 1969 by Engelke’s two grandfathers. Today, it operates several horizontal and vertical boring mill lines, machining centers plus grinding equipment — in addition to its rebuilding and retrofitting business. Customers range from major machine tool and construction equipment builders to the military and related contractors. The company employs over 20 people including two CNC engineers.

Engelke concludes, “This was a total team effort between Siemens, Standard Forged Products and our company. The result was a better-than-new production line for our customer, which came about through the use of new modern motion control and CNC technologies, diverse talents cooperating together and a good deal of old-fashioned American ingenuity.”
