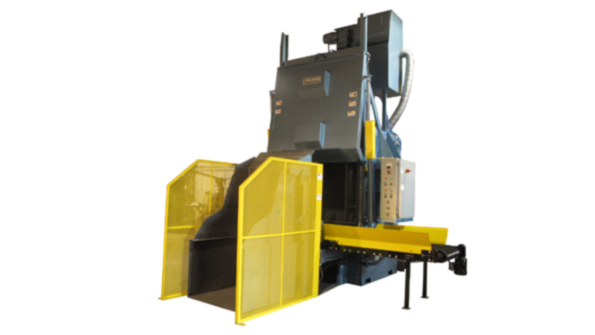

Optional features of the Model 2400 tumble belt machine include a rotary scalping drum for removing debris from blast media, loader, take away belt, and auxiliary abrasive hopper.

More Durable Tumble Blast Machine

Sept. 3, 2013
24 cu.ft., with 2,300-lb. belt capacity Optimize blast patterns Manganese alloy liner

VIKING BLAST & WASH SYSTEMS introduced a newly redesigned tumble belt blast machine, the 24-cu.ft. Model 2400. This new version incorporates changes to the loader and discharge belt options that make it more durable for heavy-duty operations like forging shops and foundries. The increased number of optional features makes the 2400 a more versatile machine with a wider range of applications.

Viking Blast & Wash Systems offers industrial cleaning machinery for all sizes and shapes of metal parts.

The new 2400 is equipped with a 56-in. diameter barrelhead and 48-in. wide rubber belt with 2,300-lb. belt capacity, this unit is equipped with a 2-HP abrasive auger to feed abrasive to the bucket elevator, as well as a 3-HP direct-drive bucket elevator-type lifting system with airwash separator to clean abrasive prior to blasting.

The novel repositioning capability of the 40-HP VK PowerMax series blast wheel optimizes the blast pattern to make the most efficient use of wheel performance. The drumheads and sideliners are fabricated in manganese alloy as standard, and are easily accessible for service.

Other optional features are a rotary scalping drum for removing debris from blast media, loader, take away belt, and auxiliary abrasive hopper. Front bucket loaders and custom unloading conveyors are common options for the 2400.

Peening requirements are satisfied with optional variable-speed blast wheel control, electro-magnetic abrasive control valve, and classifier, as well as optional PLC and touch screen for pre-programmed, recorded, part-specific recipes.

All Viking cartridge-style dust collectors are sold with NFPA required deflagration panels as standard.



Viking Blast & Wash Systems
