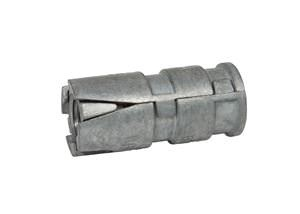

The following list clarifies the general guidelines when using concrete fasteners.

When fastening objects to concrete, the following list of some “how-to” and “why” for using expansion concrete fasteners may clarify the general guidelines for this type of application. Professionals also are aware that consulting a manufacturer’s specific set of directions may also be required for optimal results.

How to Measure Spacing

1. Concrete fasteners should not be set closer than 10-anchor diameters from each other.

2. Mechanical type anchors should be set at a minimum of 5-anchor diameters from an unsupported edge.


1. Mechanical type concrete anchors exert outward pressure against the wall of the hole in concrete. This pressure goes out and up the length of the anchor and is called a cone of concrete since appears cone-shaped. The cone-shaped area is a picture of the holding values of the anchor. Placing anchors closer than 10 anchor diameters apart will allow the two anchors' holding values to overlap and decrease the holding values of both anchors.

2. If set too close to an unsupported edge, the outward pressure of the concrete anchor will decrease the holding value of the anchor or possibly make it non-existent (a “blowout”).

How to Drill Holes

1. When drilling a hole into concrete, brick or block base material, the hole must be drilled a 1/2-inch deeper than the concrete anchor will penetrate.

2. When drilling holes for anchors to be used in concrete, brick or block, a hammer drill should be used.


1. The extra depth of the hole will ensure that the anchor does not bottom out and will allow space for dust from the drilling process. If the anchor is being placed at minimum embedment requirements, the extra space will make sure that the minimum amounts are met.

2. Drilling into concrete, brick or block requires that the material is broken up and removed from the hole. This is different from metal or steel applications since these materials must be cut and removed. The hammer motion breaks up the base material and the rotation of the hammer drill removes the debris from the hol

How to Achieve Holding Value

1. Each anchor has a minimum embedment in order to create the holding values for the anchor.

2. Tapcon concrete screws have a minimum embedment of 1 inch for both the 3/16 and 1/4-inch diameter, and a maximum embedment of 1-3/4 inches.


1. Each anchor has a minimum embedment into the base material that must be reached so that the anchor will achieve its holding values. The minimum embedment depth is different for each anchor and each diameter.

2. Tapcons cut threads into the base material. The lead thread does the cutting and will become ineffective after reaching 1-3/4-inch embedment.
