VTT’s cylindrical extruder promises to revolutionize the processing of recyclable materials and thereby promote a circular economy business. The extruder can be used, for example, to turn problematic textiles and plastics as well as food waste into pellets. The first prototype has already exceeded the industrial steering group’s expectations during initial testing. VTT is currently looking for a partner to commercialize the technology.

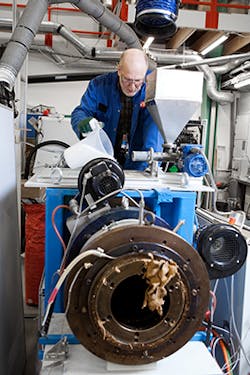

VTT’s research scientists have been testing the prototype’s performance with, for example, pieces of plastic film, mixed plastic waste, various kinds of textiles and bread. In addition to recycling, the device has been used to produce long fiber composites, and it can also be used in food and feed processing.
Behind the idea for the novel extruder is VTT’s Research Scientist Hannu Minkkinen, who discovered that materials can rotate around the device’s hollow cylinder. The device was designed and the prototype built with funding from Business Finland’s and VTT’s funding instrument for commercialization of research results.
“Commercializing the device would create completely new possibilities both in terms of waste processing and novel material combinations," explains VTT’s Principal Scientist Tomi Erho.
“Many textile recycling processes are only suitable for products containing homogeneous fibers. However, textiles are often made of a mix of fibers, and many products are comprised of different layers. The new extruder opens up a revolutionary opportunity to recycle mixed textiles and materials without having to separate fibers or components. We have successfully tested the device, for example, for recycling pillows without removing the filling in the course of a project called Telaketju with funding from Business Finland”, says Senior Scientist Pirjo Heikkilä from VTT.
30-cm screw diameter
The diameter of the extruder screw determines the size of the feed throat and also the kinds of materials that the device is capable of processing. The first prototype has a screw diameter of 30 cm instead of the 3–4 cm typically found in conventional devices of the same output.
The large diameter combined with a shallow screw channel makes it possible to mix different components of problematic, porous and lightweight materials and to make the mixed mass compatible with the next stage of the production process.
Benefits compared to traditional extruders:
- Thanks to the simple design of the device, it is cheaper to make than traditional mixing twin-screw extruders.
- VTT’s first prototype is less than 2 m long and weighs 1.5 tonnes. Thanks to its short length, the device can also be mounted upright if necessary.
- The compactness of the device makes it possible to transport to where it is needed.
- The design enables accurate temperature control combined with efficient mixing and, considering the size of the device, exceptionally long residence time. This can be a benefit when processing materials such as food and feed.
- Long fibers can be processed without cutting them, which is useful when processing textiles, for example, or when mixing fiber composites.
What is an extruder?
An extruder is a device used in plastics factories in particular. It is capable of melting, mixing and extruding paste through a shaped nozzle. The plastics industry uses extruders to make, for example, pipes and profiles, and they also have various applications in the food and feed industry.
