For handling pharmaceutical and chemical powders, the Drum Iris Technology Dock Station guarantees a high level of containment.
With Drum Iris Technology (DIT), the solution consists of an interface with two elastomer diaphragm valves. The docking principle is based on the successive opening and closing of the diaphragm valves which hold the drum and allow the operator to push it towards the flexible or rigid glove box. This system allows the contents to be accessed, while guaranteeing total leak-tightness. The station is also equipped with a stacker for lifting the drum and limiting the amount of manual effort. The stacker improves the workplace ergonomics, lowering the risk of operator injuries and optimizing the yield and production cycle times. The modularity of the drum dock station makes it possible for drums to be docked from below or from the rear.
The DIT solution can be used with a powder pump or installed directly on a reactor, filter dryer or any other type of equipment. The station is available in several variants: with a single-chamber (OEB 5) or double-chamber (OEB 6) glove box for a higher level of containment and available in stainless steel (304 / 316) or Hastelloy, with a flexible glove box (OEB 4) in low density polyethylene or polyurethane. All variants are compatible with the ATEX zones and can be equipped with integrated cleaning systems.
Single Chamber Drum Dock Station
- DIT technology integrated on chamber back of working bench
- Body built in AISI 304, AISI 316, HASTELLOY C-22
- ATEX version available
- Up to OEB 5 containment level
- Easy integration of multiple powder transfer systems
- Exhaust system with double Push-Push H14 filtration unit, for negative pressure process
- Spray-ball and spray-gun for CIP process
- Side liner for waste bag-out
- Back or bottom connection possible

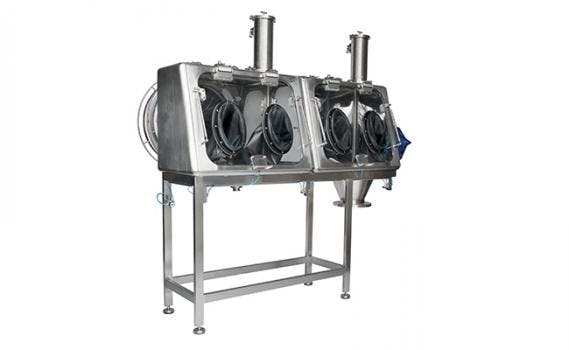

Double Chamber Drum Dock Station
As above and:
- Up to OEB 6 containment level
- Handling of powder done in the main chamber in order to keep the pre-chamber clean
- Customizable number of gloves for each chamber
- Internal transfer port with inflatable flush mounted gasket
- Fully integrable with high containment valves
- Customizable overall dimensions
