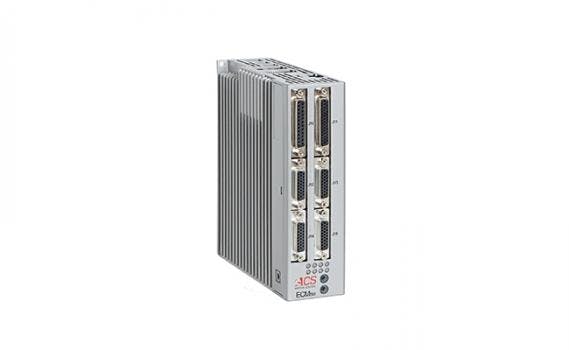

ECMsm All-in-One Motion Controller for OEMs

March 24, 2021

Part of the new line of Economical Control Modules, the ECMsm is a compact, all-in-one, 2 or 4-axis motion controller with internal drives designed for OEMs with cost-sensitive motion control applications. The ECMsm provides up to 5/10A per axis with a 12 to 48 VDC drive supply.


The ‘Connect, Command, Control’ ready-to-go usability of this product is intended for OEM machine builders who need flexibility, value, and ease of integration. Its industrial packaging minimizes integration effort and consequently reduces time to market. ECMsm’s multi-processor architecture leverages powerful control algorithms to achieve best-in-class performance, while its universal servo drive technology enables the system designer to easily integrate and control most types of motors and stages.

  • Controller and Drive Axes: 2 or 4
  • Host PC/PLC/PAC Communication: TCP/IP, Ethernet/IP, Modbus, RS-232
  • Controller Cycle Rate: 1kHz
  • Drive Supply Input: 12-48Vdc
  • Bus Voltage: Equal to drive supply input
  • Max Current Output Per Axis: 5/10A
  • Encoder Channels: 4 (AqB, Absolute, or SinCos)
  • Mounting Type: Panel
  • Functional Safety Options: STO & SS1
