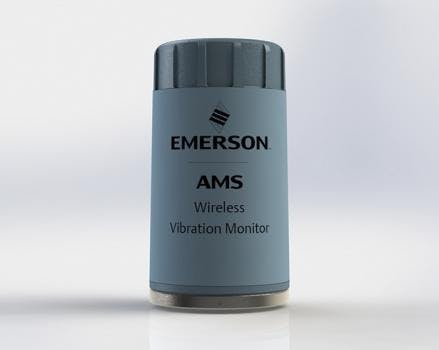

AMS Wireless Vibration Monitor

May 20, 2020

The AMS Wireless Vibration Monitor, a low-cost, easy-to-deploy vibration sensor, performs prescriptive analytics on vibration data using native software to automatically identify failure modes and prevent potential problems involving rotating assets. The compact device makes it economically feasible to fully monitor motors, pumps, fans, and other critical plant equipment to reduce downtime and achieve more reliable operations.



Many organizations lack the analysis expertise to translate vibration data into asset health. The wireless monitor provides a solution by collecting and contextualizing vibration data to generate actionable information. By applying Emerson’s PeakVue Plus technology, the device not only identifies when and how assets will fail but also why. Technicians—regardless of expertise—can quickly and clearly identify and prioritize common mechanical issues such as bearing defects, gear wear, under-lubrication, and pump cavitation, enabling them to focus more on operations-critical tasks.



Users of Emerson’s Plantweb Optics asset performance platform can conveniently receive machinery health alerts anywhere with a mobile device. These alerts can also be aggregated with data and asset health information from other sensors and systems, allowing users to run analytics on all types of assets from a single application. This provides a more complete picture of the operation’s overall health while generating specific alerts when processes or performance are at risk. Plantweb Optics is part of Emerson’s Plantweb digital ecosystem, which leverages IIoT technologies, software, and services to expand digital intelligence throughout a workforce.



The AMS Wireless Vibration Monitor operates on a plant’s existing WirelessHART network and fully supports the vibration analysis tools included in Emerson’s AMS Machine Works software. It uses a triaxial sensor to capture data in three dimensions to generate a complete picture of the machine's condition.



The AMS Wireless Vibration Monitor is the latest addition to Emerson’s comprehensive health monitoring portfolio, which includes the AMS Asset Monitor and AMS 6500 ATG. Together, these devices help organizations fully monitor the health of machinery equipment, from essential assets to operations-critical assets that can have an immediate impact on safety and production.

Sensor by Range and Frequency ResponseVibration Overall (Z):
80 g’s, 20,000 Hz;
PeakVue Z – 80 g’s, sampling 51.2 kHz
Vibration Overall (X):
16g’s, 1,000 Hz;
Vibration Overall (Y):
16 g’s, 1,000 HzAnalysis Parameters2 velocity bands (defaults 2 to 65 Hz and 65 to 300 Hz) and 2 acceleration bands (defaults 10 to 500 Hz and 500 to 1,000 Hz)Prescriptive AnalyticsBearing/Mechanical and Lubrication Severity;
Calculated Machine Speed (RPM)Waveform and SpectrumMain axis (Z):
User selectable FMax (200 & 500 Hz; 1 , 2, 5, 10, & 20kHz)
User selectable FMin (2 &10 Hz);
User selectable resolution (400, 800, 1,600 LOR)
Secondary Axes (X and Y):
User selectable FMax (200, 500, and 1,000 Hz)Diagnostic Thumbnail SpectraVelocity and PeakVue based on 1,600 LOROperating Temp.-40 to 185°F (-40 to 85°C)Operating Humidity95%, non-condensingWireless ProtocolIEC 62591 WirelessHARTBroadcast Range328 ft (100 m) Line of Sight
