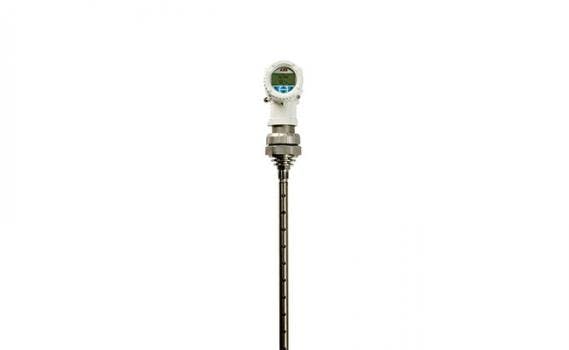

LWT300 series Smart Guided Wave Radar

March 5, 2020
ABB's wave radar uses an algorithm to make level measurement safer and easier by automatically differentiating between actual measured levels and false signals.

Featuring the powerful LevelExpert algorithm, the LWT300 series of instruments makes level measurement safer and easier, even in the most demanding conditions.



The smart LWT300 series eliminates the need for the high levels of technical expertise traditionally required to operate guided wave radars. Instead, the expertise has been embedded into the measurement device, making it easier and simpler to use. The result is optimized processes, improved productivity, and increased safety for operations personnel.



The series comprises the LWT310 for liquids and LWT320 for solids level measurement and builds on the legacy of the MT5000 series of guided wave radars. With the LevelExpert algorithm, it automatically differentiates between the actual measured level and false signals. Operators simply need to enter installation data and basic process conditions, and LevelExpert does the rest.



Baseline mapping and echo selection are no longer required as the LevelExpert cuts through the noise and automatically reports the right level. Readings carried out are therefore much more reliable. And because they are taken automatically, there is no longer any need for multiple manual adjustments by the operator.



The series is designed to perform at temperatures up to 204°C, under process pressures reaching 207 bars (3,000 psi), and to comply with the SIL2 certification for functional safety. This makes the measurement devices ideal for reliable use in a wide range of applications including industries where safety is a priority such as oil and gas; petrochemical; chemical; power generation; water and wastewater; and pulp and paper.
