Large Format Dispensing Robot

Sept. 6, 2019

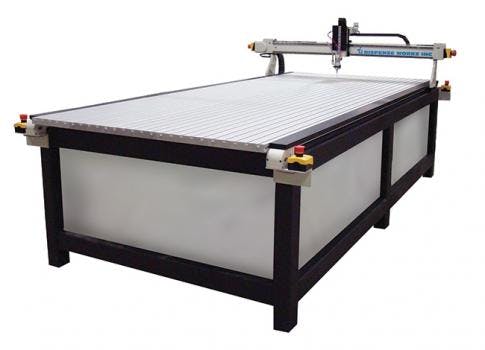

The RD2500 is the most flexible large format dispensing table available. This robot combines a smart workbench to a built-in precision overhead servo XYZ gantry system. Mechanisms are neatly tucked in and do not add to the width of the bench — this provides easy access from front, sides, and top requiring less operator “reach” to the center of the table.



Another unique design feature is the 25 full-length slots in the T-Slot table base plate providing multiple fixturing possibilities for most applications. Under this table surface, the actual machine base is fabricated from steel tubing, and then is ground to a specified flatness. This modular design provides the ideal foundation for mounting virtually any type of top surface includingT-Slot Table, Vacuum Table, Panel Conveyor, Custom Plates, and more.



Standard machine can travel at over 32 inches per second and is available in the following travels:

  • 100” x 50” (2500 x 1250 mm)
  • 50” x 50” (1250 x 1250 mm)
