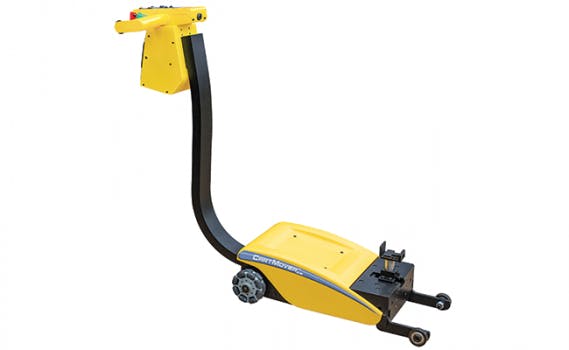

With a 20,000 lb. capacity, the CartMover XR features an ergonomic design that increases worker safety, a 4-in. lift range that allows for moving carts over a greater range of surfaces and transitions, a long-life Lithium Iron Phospate (LiFePO4) modular battery, and onboard analytics for monitoring performance and use. Portable and highly-maneuverable, the CartMover XR is as easy-to-use as a pallet jack – just far more powerful.
Excellent for both long-haul moves, and short cell manufacturing moves, the cart fits most standard carts and can be equipped with a variety of engineered or custom hitches to connect securely to various carts, bins, vehicles or other wheeled loads. The CartMover XR is customizable to solve specific material handling challenges.
Features:
- Sleek, high-visibility ergonomic design increases worker safety and improves productivity
- 4-in. lift range offers increased ground clearance for steeper transitions, inclines, and ramps
- Quick-Change, high-performance 24V Lithium Iron Phosphate (LiFePO4) long-life battery
- Onboard, in-depth analytics offer data on use, performance, and battery charging cycles
- Capacity: 100 to 20,000 lb.
- Compact size and usability
- Programmable 110A Speed Controller
- Push/Pull Speed: 209 fpm max (2.4 mph)
- Rugged welded frame construction
- Ergonomic variable speed throttle
- Reversing Emergency Switch
- Superior OEM Support
What can the CartMover XR move?
- Mobile carts with heavy castings or metal parts
- Supply carts and waste bins
- Carts used in shipping and receiving
- Laundry carts (multi-cart “trains”)
- Just about anything on casters or wheels – moves loads weighing up to 20,000 lb.
