Assembly Automation Conveyor

April 9, 2019

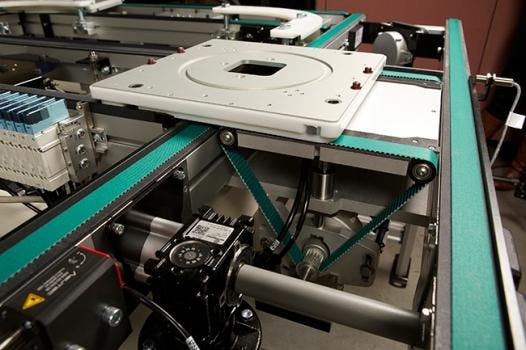

The 2200 Precision Move Pallet System conveyor is designed to provide accurate positioning and routing of parts for assembly, robotic and inspection applications. The 2200 Series Precision Move Pallet System is now available with new features including heavy load corners, tight turn corners, low-profile lift and locates, elevators and more.


Additionally, Dorner and its 2200 Series conveyor are now a certified UR+ Solution partner that simplify robot and conveyor integration for a wide variety of automated applications. Easy programming, fast set-up, and flexible deployment make the Dorner 2200 Series ideal for systems that need an infeed and discharge to a Universal Robot.

Best For:

  • Medium to large-sized part movement
  • Product routing and control
  • Product inspection
  • Assembly automation


Sizes & Measurements

  • Widths: 160, 240, 320, 400, and 480 mm
  • Lengths: Up to 24? 7? (7,500 mm)


Loads and Speeds

  • Conveyor Load Capacity
  • 500 lb non-accumulating
  • 250 lb accumulated
  • Pallet capacity of 30 to 70 lb
  • Speeds up to 114 ft/min (34 m/min)



  • Dual Belt conveyors with common drive module
  • 25 mm wide, 5 mm pitch timing belt conveyor
  • Standard or static conductive belting available
  • Aluminum extruded frame with universal T-Slot
  • Quick belt change without conveyor removal



  • 160 to 480 mm
  • Industry compatible sizes and brushing locations
  • Static conductive pallet skirt
  • Square and rectangular sizes available
  • Pallets are sold as kits of completed assemblies


Pin Tracking System

  • Simple and cost-effective method of tracking pallets through turns
  • Used on 90 Degree Corner and 90 Degree Corner & Merge Modules
