Super Lift Hydraulic Gantries

Jan. 30, 2019
Enerpac's hydraulic gantries handle 100 to 200 tons.

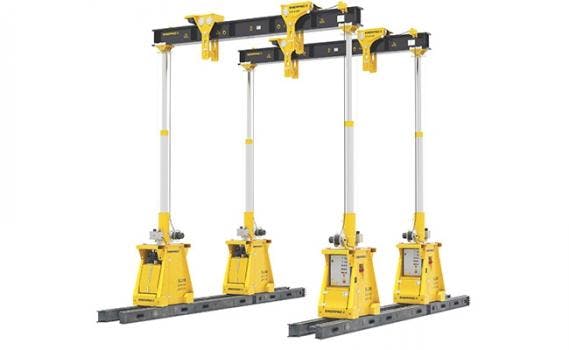

The SL100 and SL200 Hydraulic Gantries offer customers a higher capacity gantry on a narrow two-foot track gage.


Super Lift gantries are ideal for manufacturing, rail and general material handling markets. Typical applications involve local transportation and installation of presses, machines, rail cars, and compressors. Hydraulic gantries are easy to mobilize and demobilize with high-lifting capacity and accurate load positioning. They also have the ability to operate in confined or limited-access spaces.


SL100 and SL200 Hydraulic Gantry key features include:

  • Self-contained hydraulics
  • Range from 100 to 200 ton
  • Self-propelled wheels
  • 2 stage lift cylinders
  • Intellilift synchronized control system
  • Lifting height up to 15 ft (SL100) and 22 ft (SL200)
  • ASME B30.1 compliant


Additional components and accessories are available such as header beams, lifting anchors, side shifts and skid tracks. There are also tarpaulin covers, transport frames for side shift units, slings, and shackles.


The SL100 and SL200 Hydraulic Gantries include the Intellilift control system, providing wireless control, unrestricted operator position, and automatic synchronization for lifting/lowering and traveling.


All of Enerpac’s gantries are tested at maximum capacity at maximum extension and tested under the witness of Lloyd’s Register.
