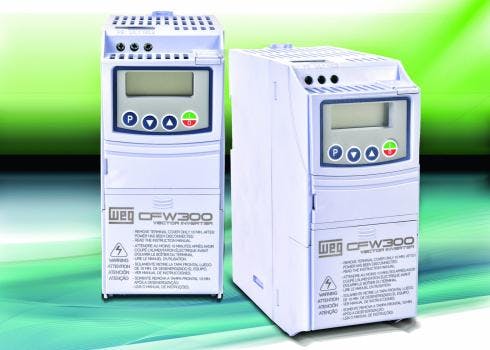

WEG CFW300 VFDs

AutomationDirect's WEG CFW300 variable frequency drive is a high-performance VFD for three-phase induction motors and is ideal for applications on machines or equipment that require precise control with easy setup and operation.
Dec. 21, 2018

The WEG CFW300 variable frequency drive is a high-performance VFD for three-phase induction motors. It is ideal for applications on machines or equipment that require precise control with easy setup and operation. The CFW300 features a compact size with contactor-style electrical connections (top in / bottom out). The VFD's performance can be scaled to match the application by selecting WEG vector control (VVW) or scalar control (V/Hz).

The CFW300 includes a built-in keypad and SoftPLC with free WEG Programming Suite (WPS) software for custom-tailored control schemes. The integrated WPS tool assists in the creation of automation applications, allowing graphical monitoring, parameter setting and programming in Ladder language (IEC 61131-3).

Built-in I/O capabilities include four configurable (PNP or NPN) digital inputs, one 0.5 A / 250 VAC relay output, and one 0-10 VDC / 4-20 mA analog input. A variety of plug-in option modules for additional I/O and communications protocols can be added to extend capabilities. A remote keypad and flash memory module are also available.


AutomationDirect
Cumming, GA
Toll-free: (800) 633-0405
Local: (770) 889-2858
[email protected]
www.automationdirect.com
