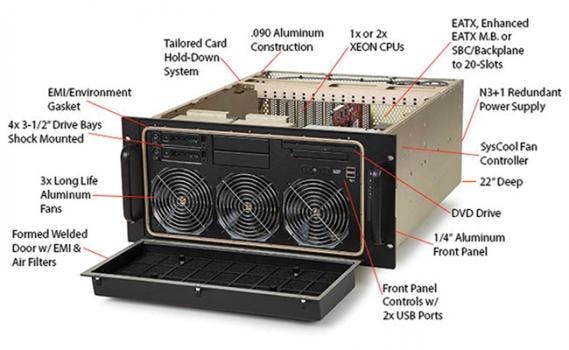

The HPC M5U-22 is based on a ruggedized 5U enclosure that is designed to meet the environmental requirements for a wide range of ground, vehicle, shipboard and aircraft installations. Operating specs include 12,000 feet, 0 to 50 degrees C, 5-95% humidity – noncondensing and vibration/shock resistant. This system also offers a high-power redundant power supply and RAID options for additional hard drive redundancy.
The heart of this system is designed around a long-life system board using the new Intel Xeon Scalable CPUs. It also provides 4 3.5 drive bays, a slim slot fed optical drive, 2 USB 2.0 ports, up to 1TB of RAM, and can run Windows 10, Windows 7 Pro as well as other 32 and 64 bit operating systems. The CP SysCool® thermal management system extends the life of the computing system, reduces power consumption, and lowers overall system noise levels.
The system has the capability to support up to 4x NVIDIA Tesla GPU’s in a single package.
Chassis Plans’ rackmount computer systems are designed with a removable back plate that allows a 12V power cord to run from the computer’s power supply to a display or keyboard video monitor. This Exterior Power Jack is available for most Chassis Plans’ monitors. By running the display with the computer systems’ power supply, this Exterior Power Jack option can provide many benefits including fewer needed cables, less weight and cost, and elimination of additional equipment, such as a power brick.
In the case of video processing, an extremely fast dual-CPU computer can only analyze a single HD (1080p) video stream at about 15 frames per second. The addition of just one NVIDIA Tesla GPU to the server platform will accelerate the video processing software by up to 12 times. This number can also be increased by adding additional GPUs to a platform. This boost in parallel processing power can reduce the time required to analyze 24 hours of HD (1080p) video to under one hour. This enables the military to more quickly identify security threats or targets of interest at a much faster rate with a higher degree of accuracy.
Additionally, HPC systems can be utilized for image-enhancement applications that reveal previously hidden data in satellite or UAV images. Parallel processing allows for the use real-time image stabilization and enhancement techniques to clean up video feeds. Having these computers deployed in the field, versus having to transmit or transport data back to remote locations for further analysis, adds a new dimension when information can be processed and understood in real time.
As each customer’s project is unique and offers different challenges, Chassis Plans has the ability to provide a customized platform solution. With a variety of mechanical and electrical changes and upgrades to several COTS hardware paths available, a customer can custom design a HPC solution that maximizes performance, ruggedization and budgetary price points.
