    Powerful Voice Coil Motor

    Nov. 7, 2018
    Related To: Moticont
    6667702f74c1d40008e43538 830 350

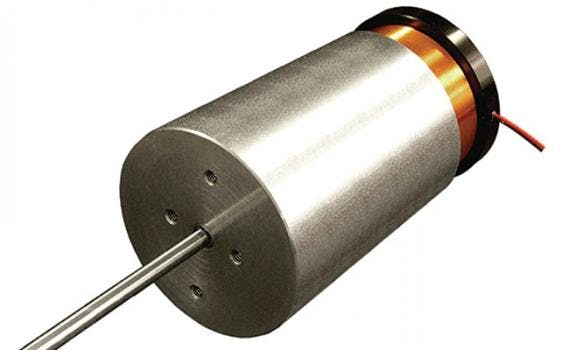

    Moticont has released a more powerful high speed, zero backlash, high accuracy, high repeatability, high acceleration/deceleration, linear voice coil motor featuring an internal shaft and bearing. The compact Moticont GVCM-070-089-03 Linear Voice Coil Motor has a high force to size ratio, 40.86 lbs. (181.5 N) continuous force and 129.1 lbs. (573.4 N) peak force. The housing measures 2.750 in. (69.9 mm) in diameter and is 3.50 in. (88.9 mm) long and has threaded mounting holes for easy integration into current and future applications. The stroke of the motor is 2.50 in. (63.5 mm) and the precision ground shaft is 0.2359 in. +/- 0.0003 (5.993 mm +/-0.008) in diameter with an internal thread.
