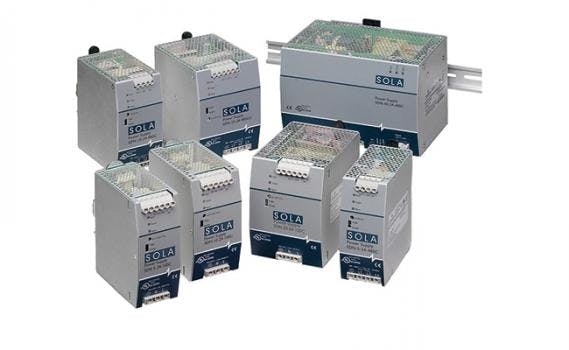

SolaHD SDN-C International Power Supply

Nov. 10, 2018

SolaHD SDN 16-12-100C power supply brings the benefits of the high-performance SolaHD SDN-C Series power supply family to global applications requiring up to 16 Amp continuous 12V DC power. It is an excellent choice for system integrators looking for a full-featured power supply in a compact mechanical package with class-leading reliability.


Designed for international use in harsh environments and hazardous locations, the 12V DC power supply has all the same winning features as the legacy SDN 16-12-100P it replaces yet is 27% narrower to take up significantly less space on a DIN rail, plus it is competitively priced for maximum value. The SDN 16-12-100C power supply addresses the unique needs of factory automation, petrochemical processing, chemical plants, wastewater treatment, and material handling, among others.


The SDN 16-12-100C power supply meets extensive international certifications including UL, CSA, CE, Class I Zone 2, ATEX, IECEx, ExEAC, ABS, and DNV-GL to ensure global compliance, even in hazardous locations and offshore applications. Advanced features incorporated into the unit, such as its wide operating temperature range, PowerBoost overload capability to start high inrush loads, universal AC and DC input voltage, and active power factor correction, provide the versatility required to power the vast majority of industrial loads.


High reliability is a given with SolaHD power supplies and the new SDN 16-12-100C is no exception. Reliability comes in the form of a high MTBF, extensive diagnostics visually indicated by color LEDs, a relay output to provide power output status information to a PLC or other control equipment, and a potentiometer adjustable voltage output.


For critical applications, two units of SDN 16-12-100C can be used in conjunction with the SDN 2X20RED Redundancy Module to provide redundant power supply operation.

UL Recognized Component, Haz. Loc.Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IICATEX DirectiveEx II 3 G, Ex ec nC IIC GcIECEx CertifiedEx ec nC IIC GcHertz1-Phase: 43 to 67 Hz; 3-Phase: 50/60 HzInput Voltage Range1-Phase: 100 to 240V AC; 3-Phase: 380 to 480V ACOperating Temperature-40 to 158°F (-40 to +70°C)Output Power120 to 960 WOutput Voltage Range12V (12 to15V DC Adj.) or 24V (23.5 to 28.5V DC Adj.)Overload Capability>30.5 but < 33 Vdc, auto-recoveryStatus Indicator3 status LEDs (Input, Output, Alarm)Number of PhasesSingle and ThreeMountingDIN TS35/7.5 or TS35/15
